Kitchen Sink

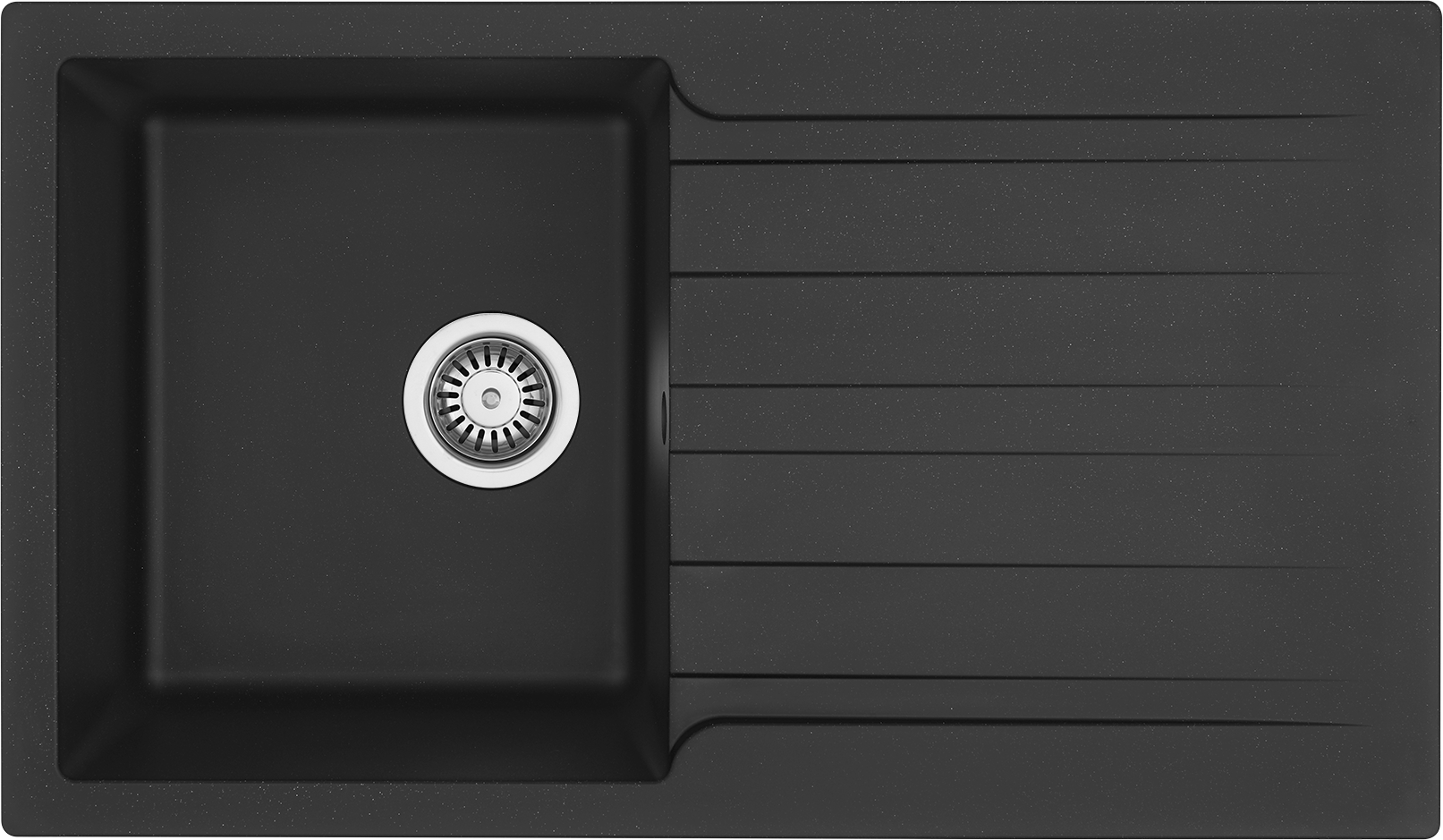

ELEMENT 86
Total length 860 mm Width overall 500 mm Bowl length 365 mm Bowl width 430 mm Bowl depth 212 mm Minimum cabinet size 450 mm
ELEMENT 100
Total length 1000 mm Width overall 500 mm Bowl length 525 mm Bowl width 430 mm Bowl depth 210 mm Minimum cabinet size 600 mm

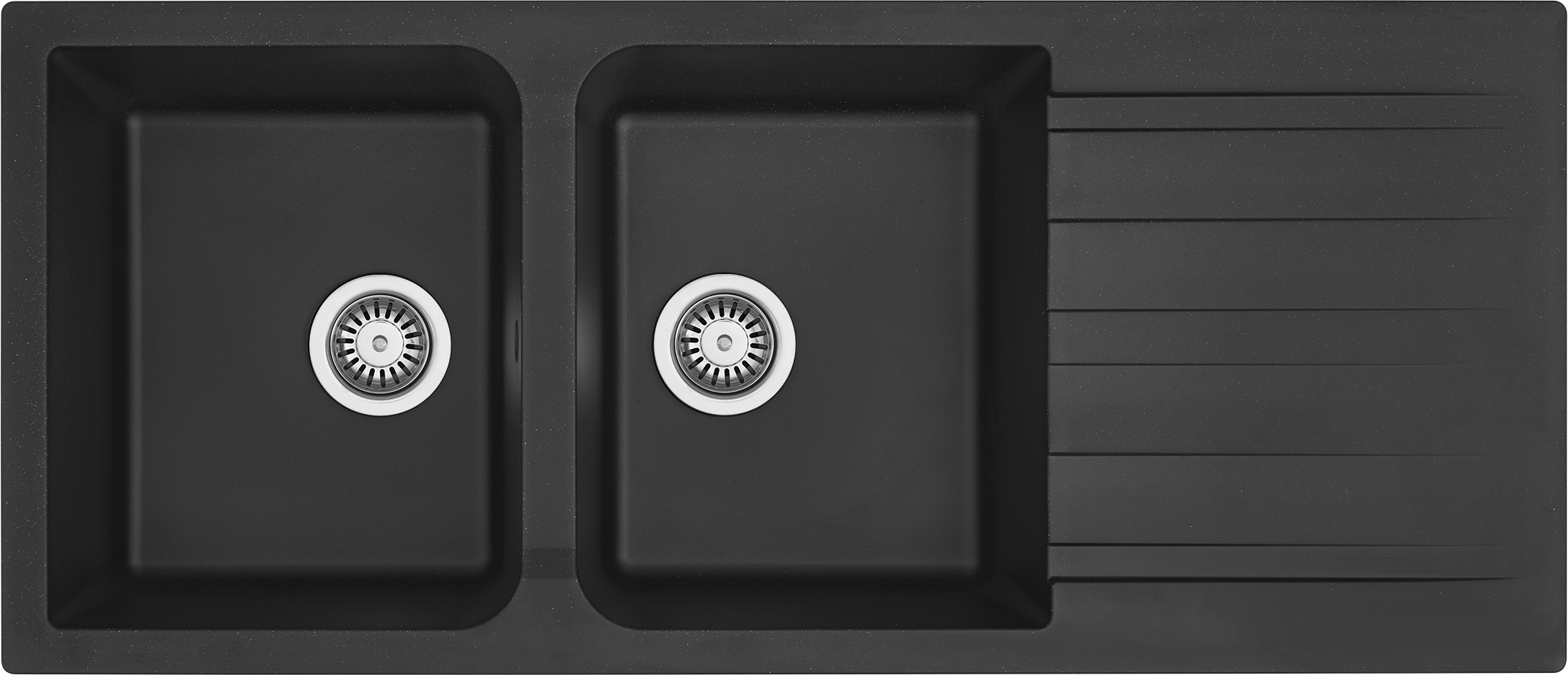

ELEMENT 116
Total length 1160 mm Width overall 500 mm Bowl length 350 mm Bowl width 430 mm Bowl depth 212 mm Minimum cabinet size 800 mm

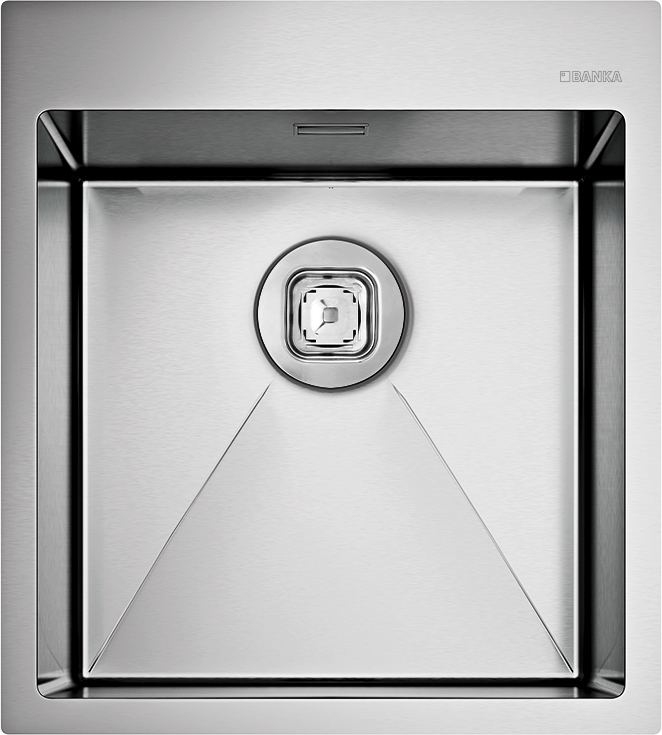

ADVANCE 40
Total length 450 mm Width overall 500 mm Bowl length 400 mm Bowl width 400 mm Bowl depth 190 mm Minimum cabinet size 500 mm

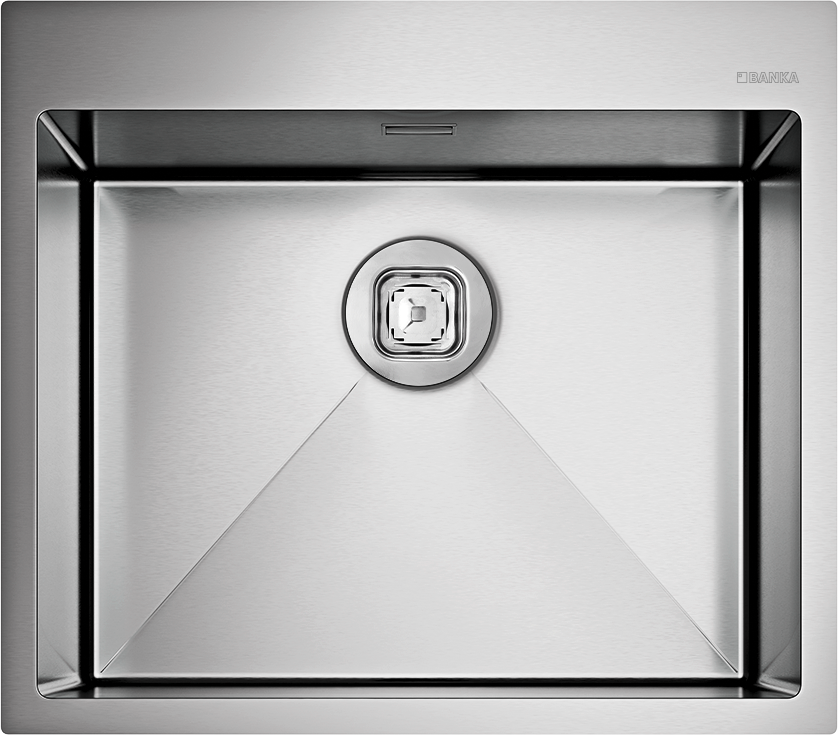

ADVANCE 52
Total length 570 mm Width overall 500 mm Bowl length 520 mm Bowl width 400 mm Bowl depth 190 mm Minimum cabinet size 600 mm

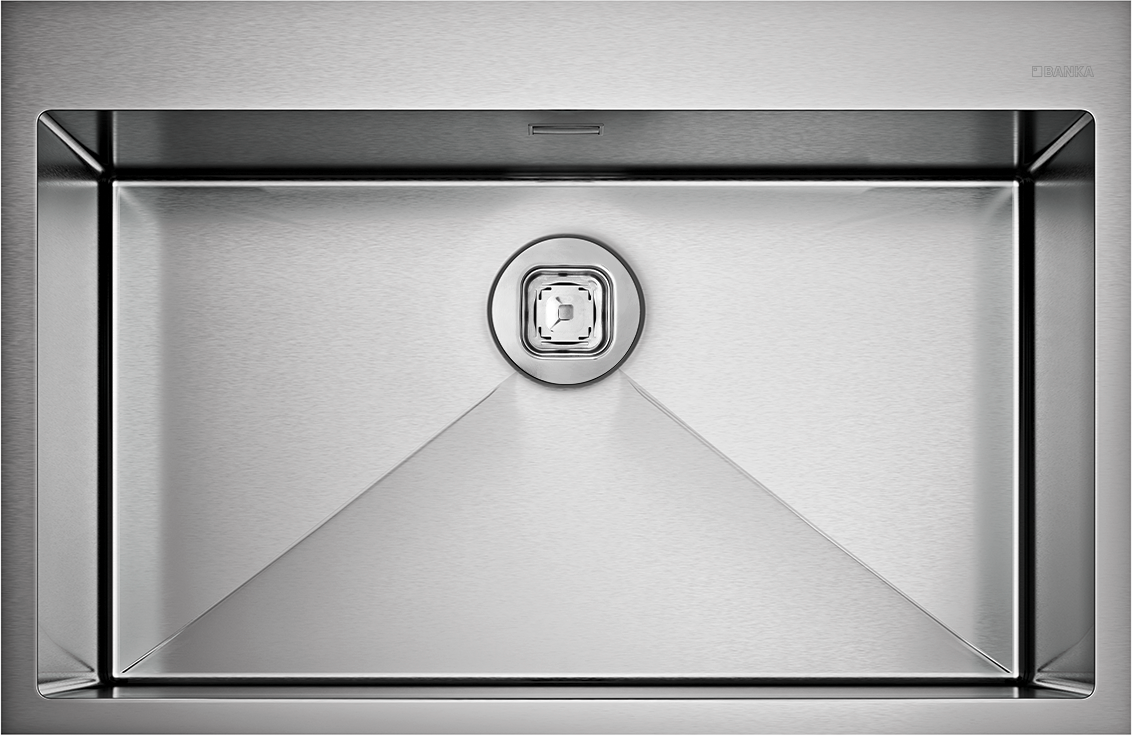

ADVANCE 72
Total length 770 mm Width overall 500 mm Bowl length 720 mm Bowl width 400 mm Bowl depth 190 mm Minimum cabinet size 900 mm

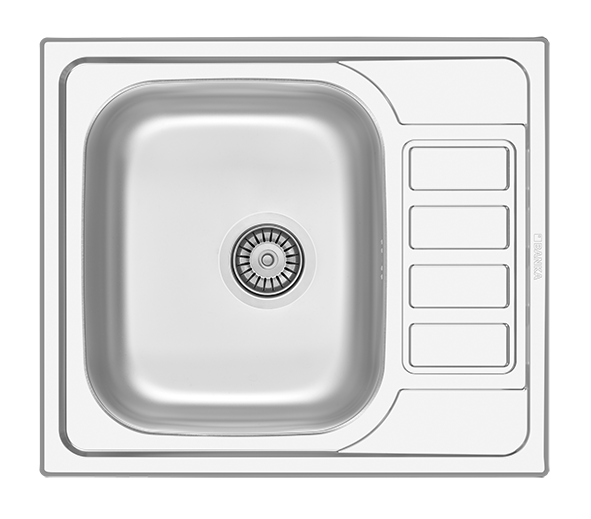

BALANCE 58
Total length 580 mm Width overall 500 mm Bowl length 340 mm Bowl width 400 mm Bowl depth 170 mm Minimum cabinet size 450 mm

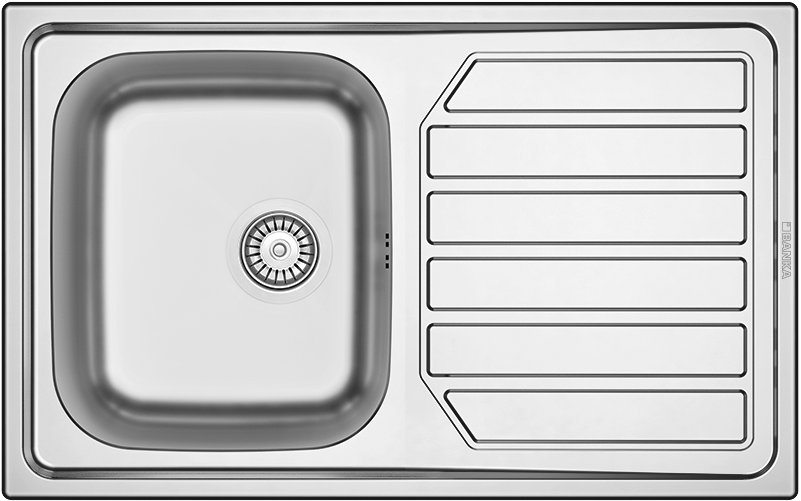

BALANCE 80-1
Total length 800 mm Width overall 500 mm Bowl length 340 mm Bowl width 400 mm Bowl depth 170 mm Minimum cabinet size 450 mm

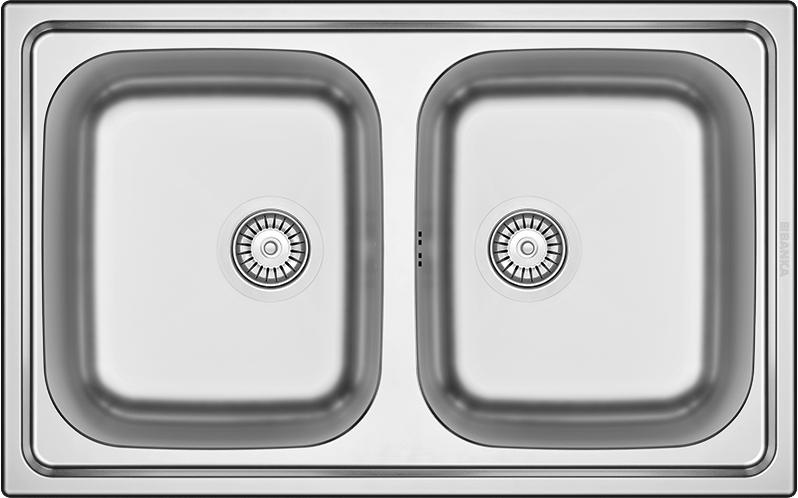

BALANCE 80-2
Total length 800 mm Width overall 500 mm Bowl length 340 mm Bowl width 400 mm Bowl depth 170 mm Minimum cabinet size 800 mm

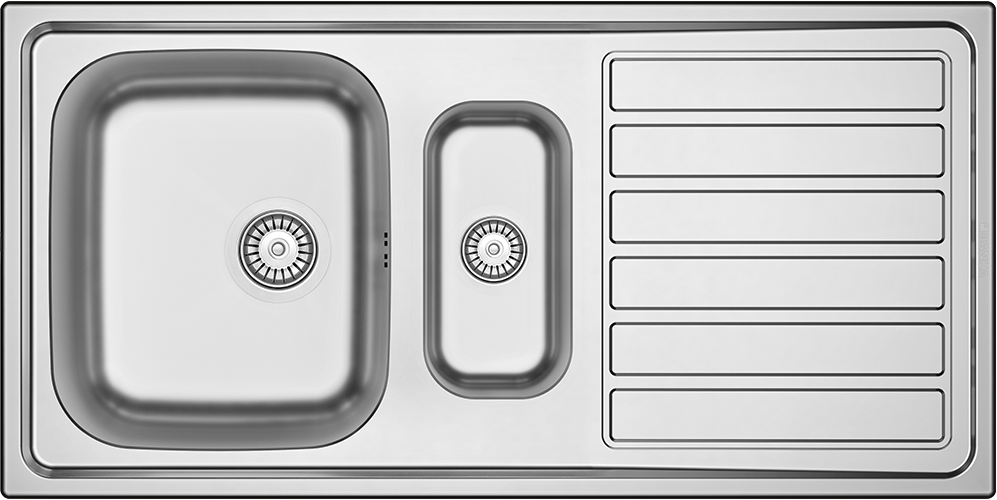

BALANCE 100-15
Total length 1000 mm Width overall 500 mm Big Bowl length 340 mm Small Bowl length 146 mm Big Bowl width 400 mm Small Bowl width 296 mm Bowl depth 170/150 mm Minimum cabinet size 600 mm

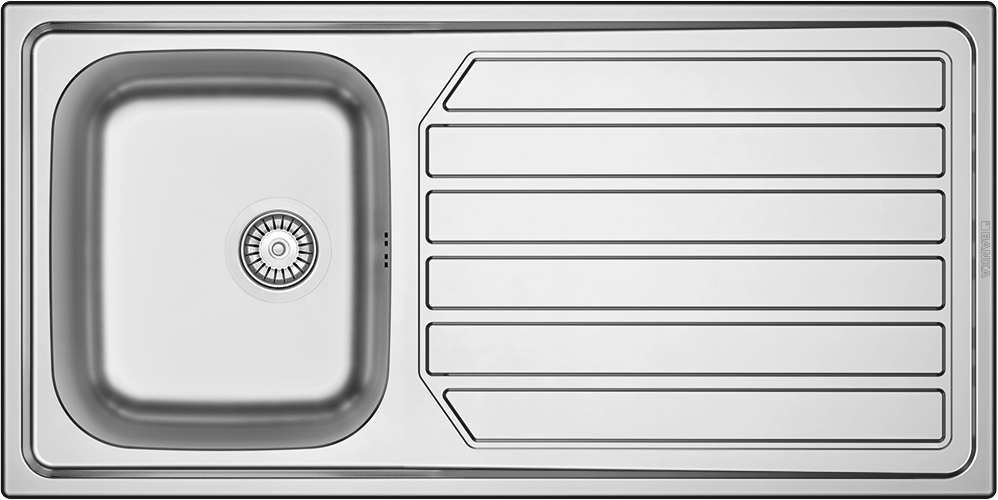

BALANCE 100-34
Total length 1000 mm Width overall 500 mm Bowl length 340 mm Bowl width 400 mm Bowl depth 170 mm Minimum cabinet size 450 mm

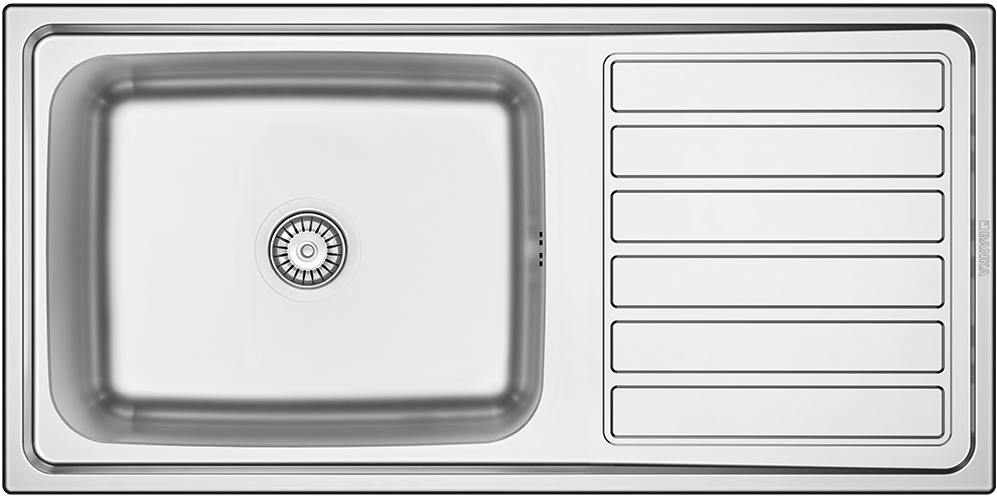

BALANCE 100-50
Total length 1000 mm Width overall 500 mm Bowl length 500 mm Bowl width 400 mm Bowl depth 170 mm Minimum cabinet size 800 mm
BALANCE 120
Total length 1200 mm Width overall 500 mm Bowl length 340 mm Bowl width 400 mm Bowl depth 170 mm Minimum cabinet size 800 mm

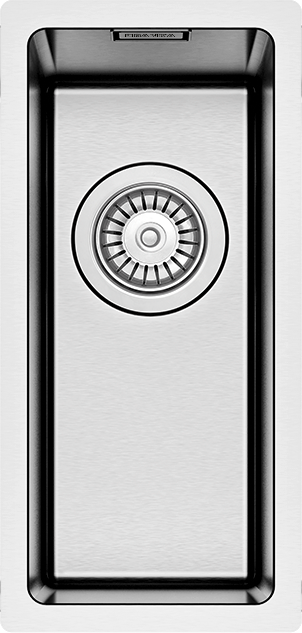

BOLD 17
Total length 210 mm Width overall 440 mm Bowl length 170 mm Bowl width 400 mm Bowl depth 170 mm Minimum cabinet size 300 mm

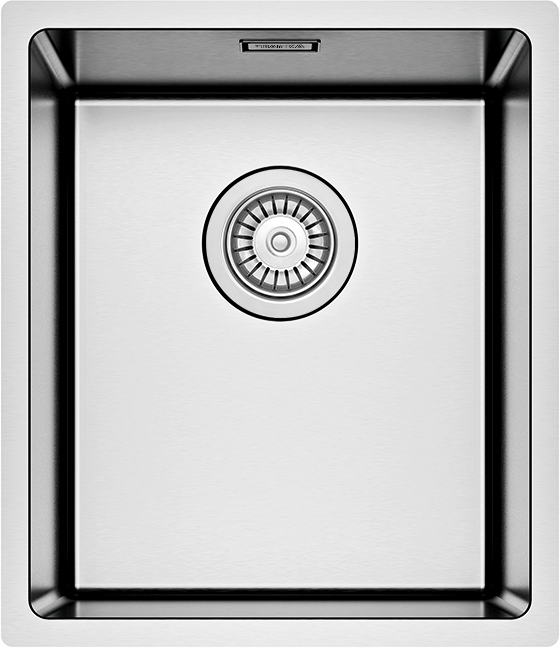

BOLD 34
Total length 380 mm Width overall 440 mm Bowl length 340 mm Bowl width 400 mm Bowl depth 300 mm Minimum cabinet size 450 mm

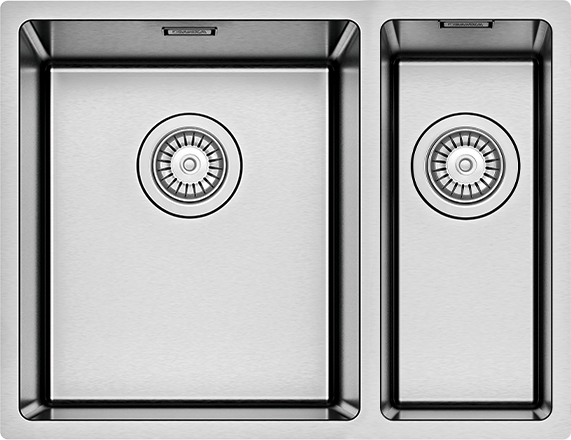

BOLD 34-17
Total length 570 mm Width overall 440 mm Big Bowl length 340 mm Small Bowl length 180 mm Big Bowl width 400 mm Small Bowl width 400 mm Bowl depth 200 mm Minimum cabinet size 600 mm

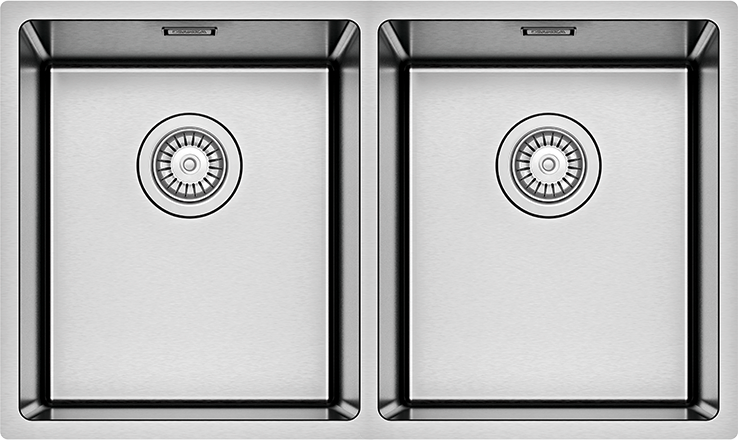

BOLD 34-34
Total length 740 mm Width overall 440 mm Bowl length 340/340 mm Bowl width 400/400 mm Bowl depth 200/200 mm Minimum cabinet size 800 mm

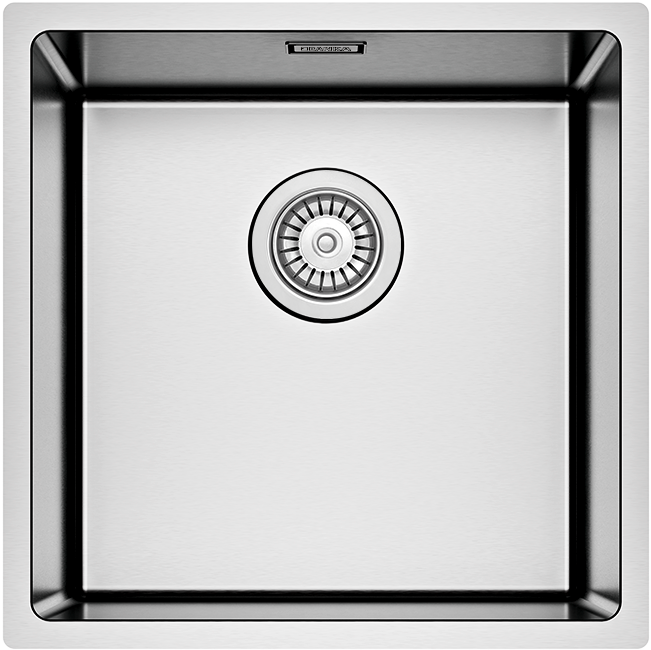

BOLD 40
Total length 450 mm Width overall 500 mm Bowl length 400 mm Bowl width 400 mm Bowl depth 190 mm Minimum cabinet size 500 mm

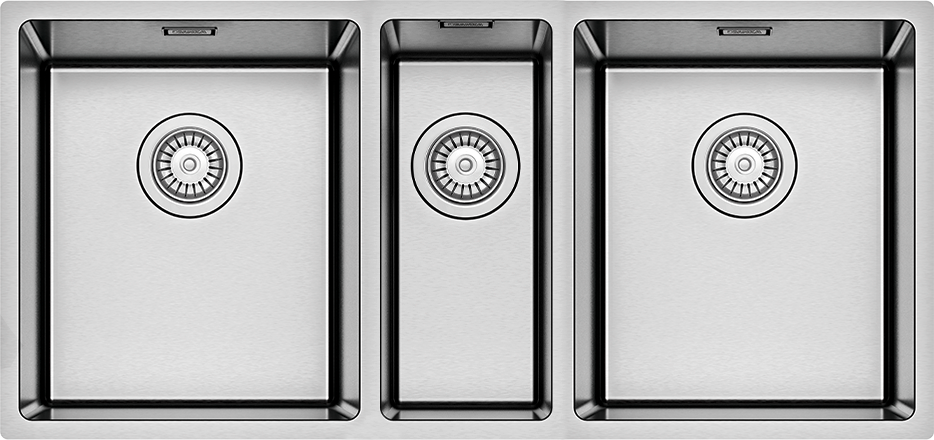

BOLD 40-17-40
Total length 1050 mm Width overall 440 mm Big Bowl length 400 mm Small Bowl length 170 mm Big Bowl width 400 mm Small Bowl width 400 mm Bowl depth 200 mm Minimum cabinet size 1100 mm

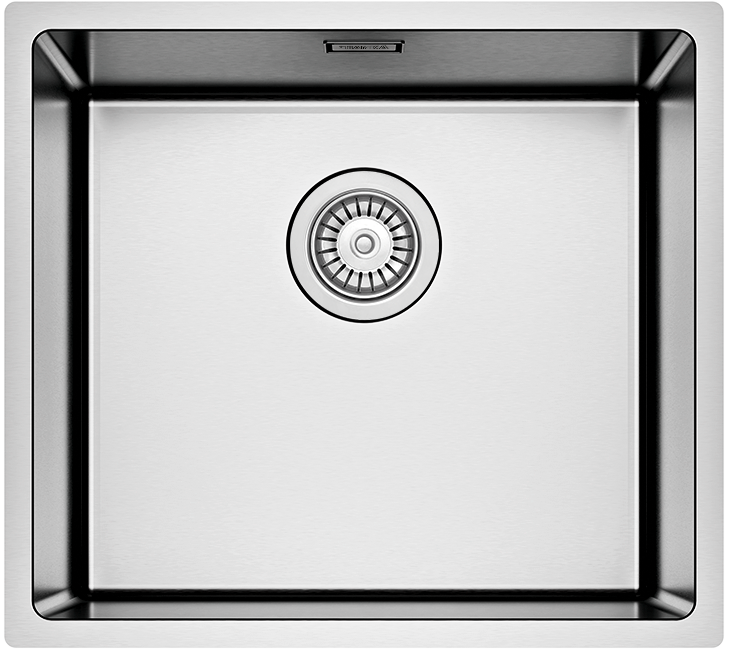

BOLD 45
Total length 490 mm Width overall 440 mm Bowl length 450 mm Bowl width 400 mm Bowl depth 200 mm Minimum cabinet size 600 mm

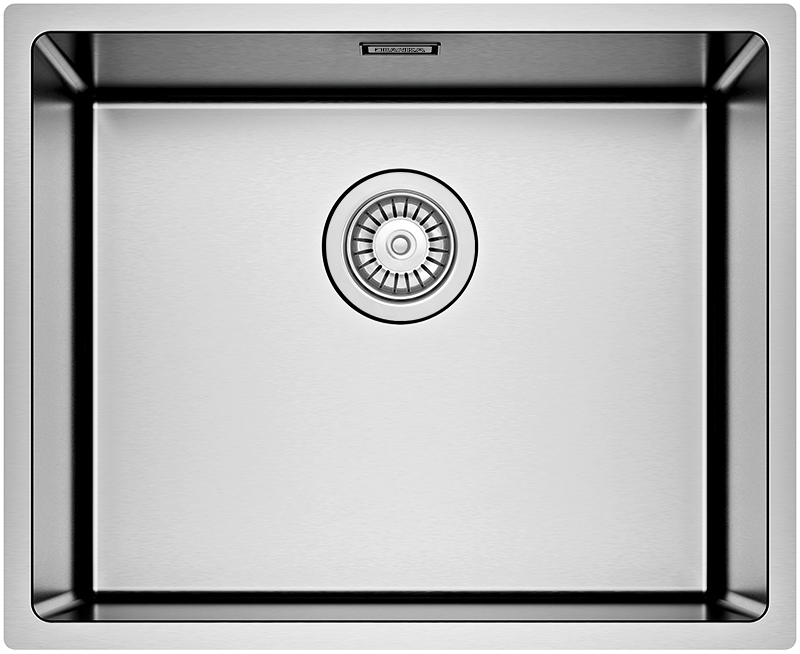

BOLD 50
Total length 540 mm Width overall 440 mm Bowl length 500 mm Bowl width 400 mm Bowl depth 200 mm Minimum cabinet size 600 mm

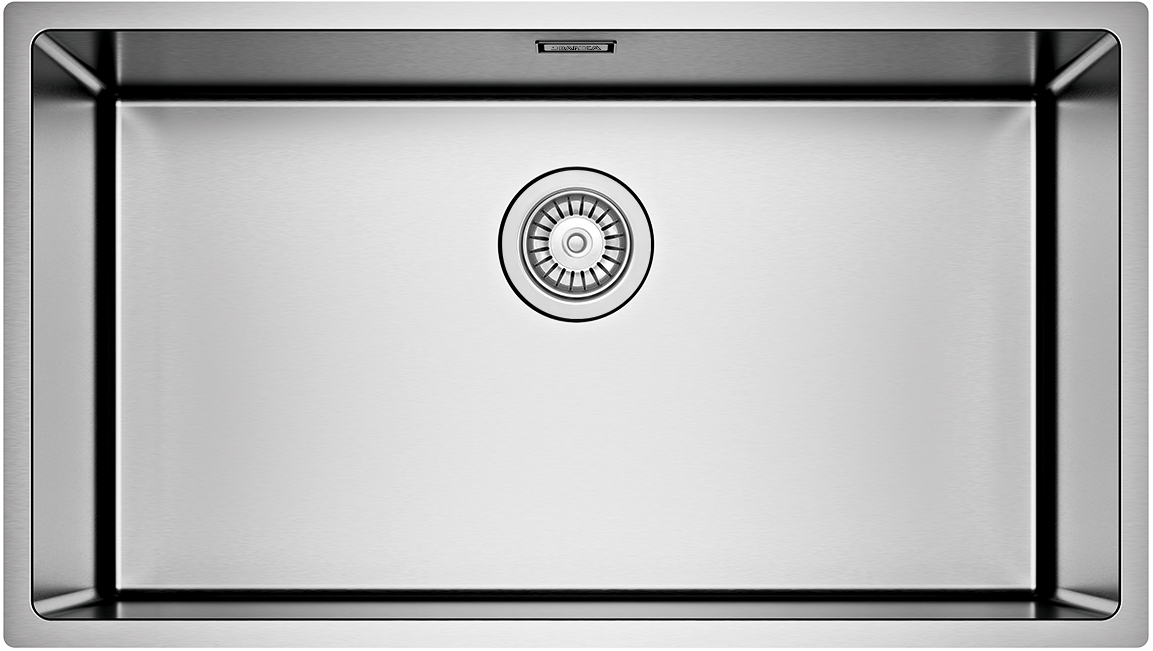

BOLD 74
Total length 780 mm Width overall 440 mm Bowl length 740 mm Bowl width 400 mm Bowl depth 200 mm Minimum cabinet size 800 mm

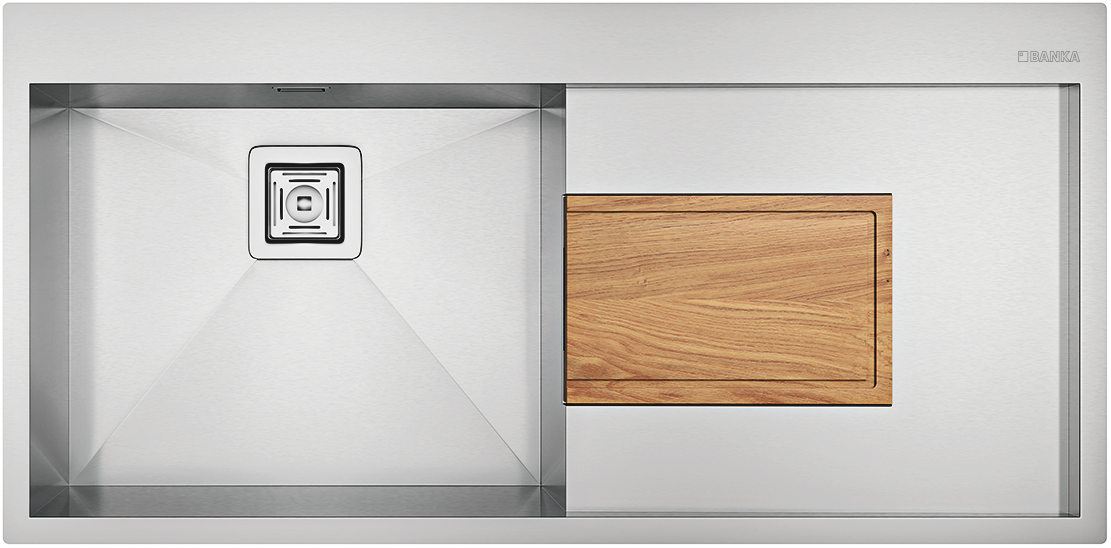

CARAVELA
Total length 1000 mm Width overall 500 mm Bowl length 475 mm Bowl width 400 mm Bowl depth 190 mm Minimum cabinet size 600 mm

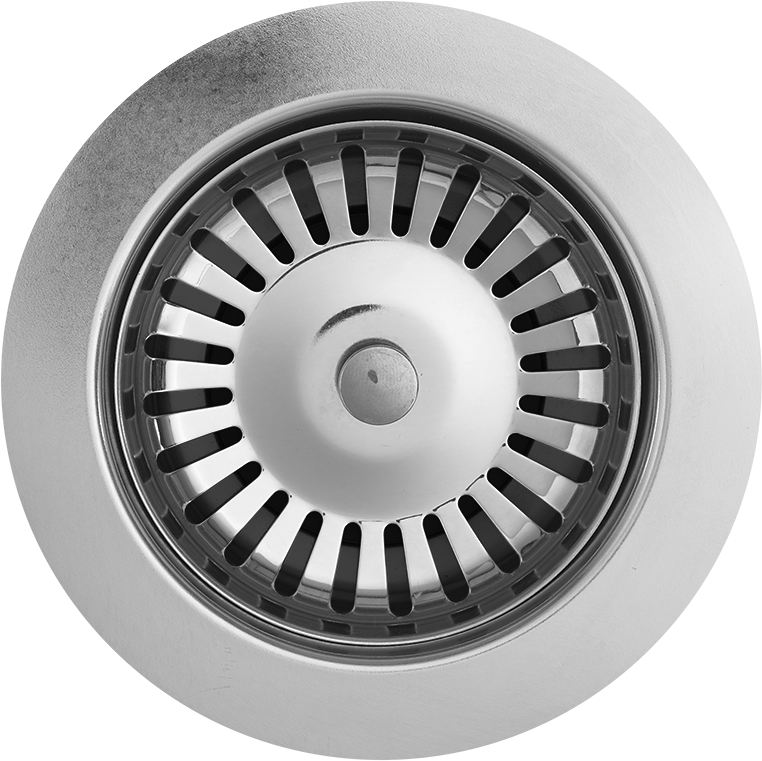

CLASSIC
Not Available

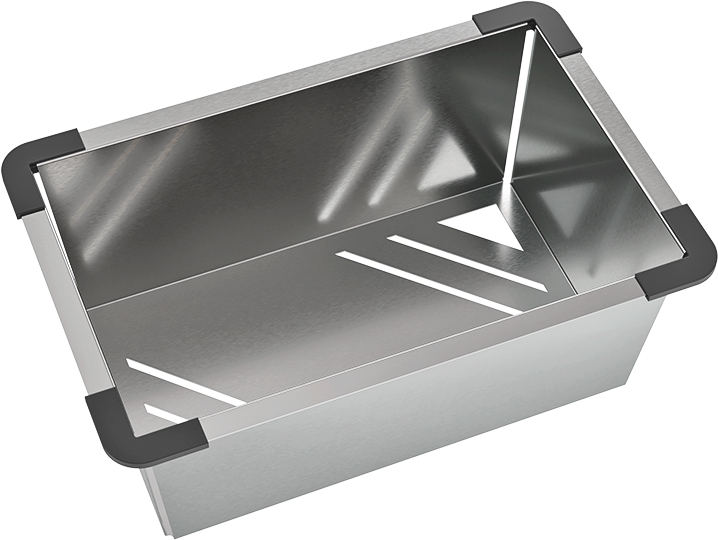

COLANDER 10
Total length 230 mm Width overall 350 mm

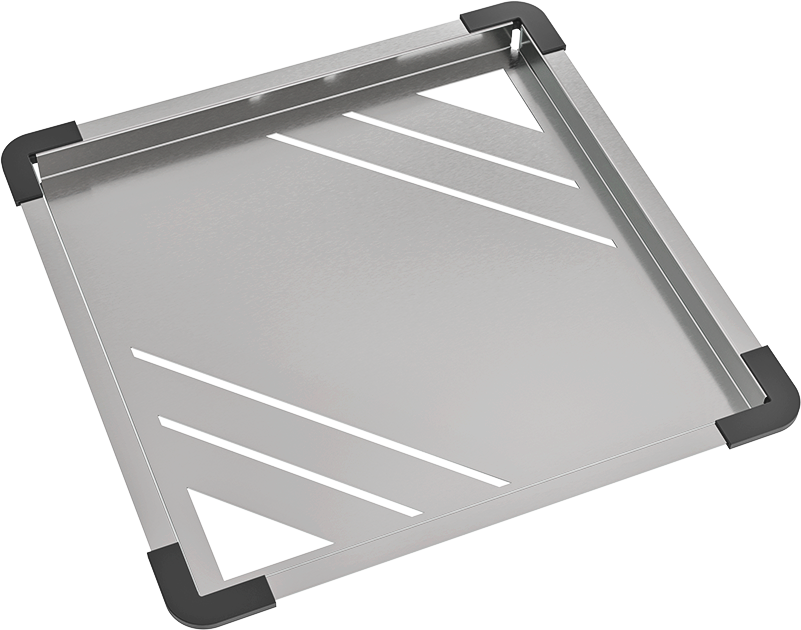

COLANDER 20
Total length 350 mm Width overall 350 mm

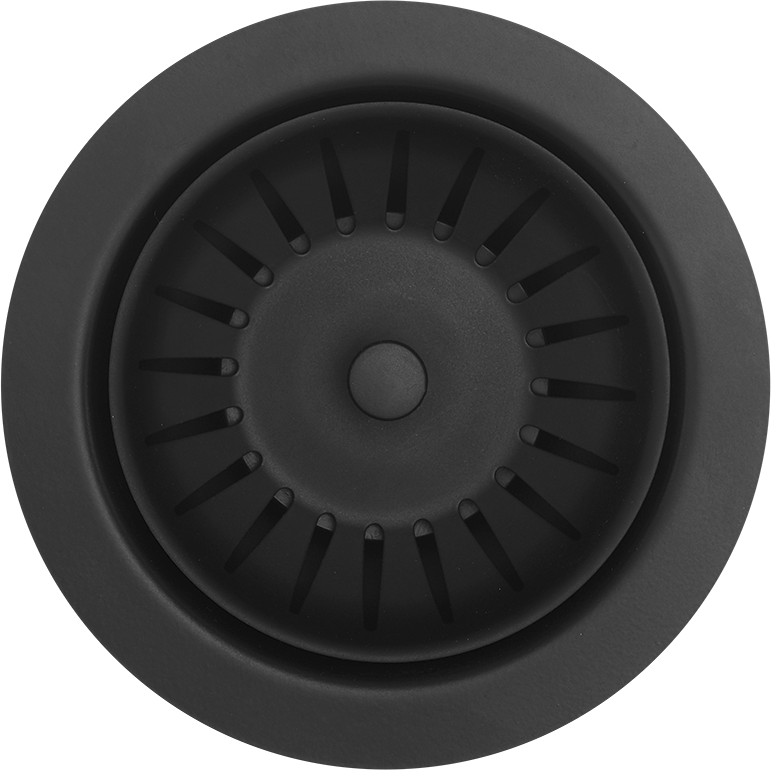

DARK
Not Available
ELECTRIC
Not Available

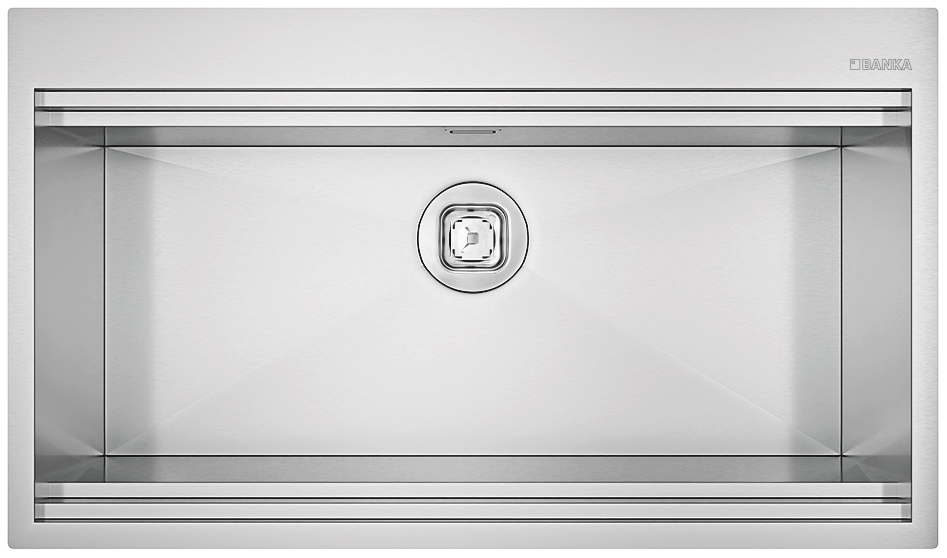

FLOW
Total length 860 mm Width overall 500 mm Bowl length 810 mm Bowl width 400 mm Bowl depth 250 mm Minimum cabinet size 900 mm

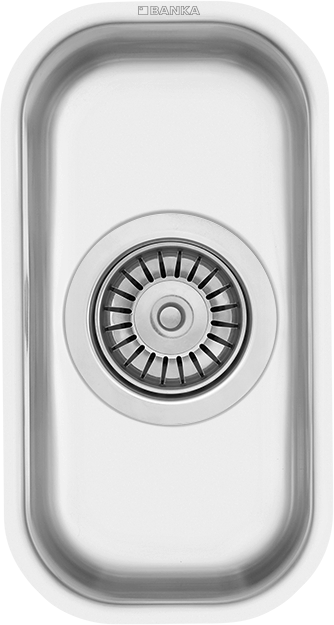

IBERICO 15
Total length 186 mm Width overall 318 mm Bowl length 146 mm Bowl width 296 mm Bowl depth 150 mm Minimum cabinet size 250 mm

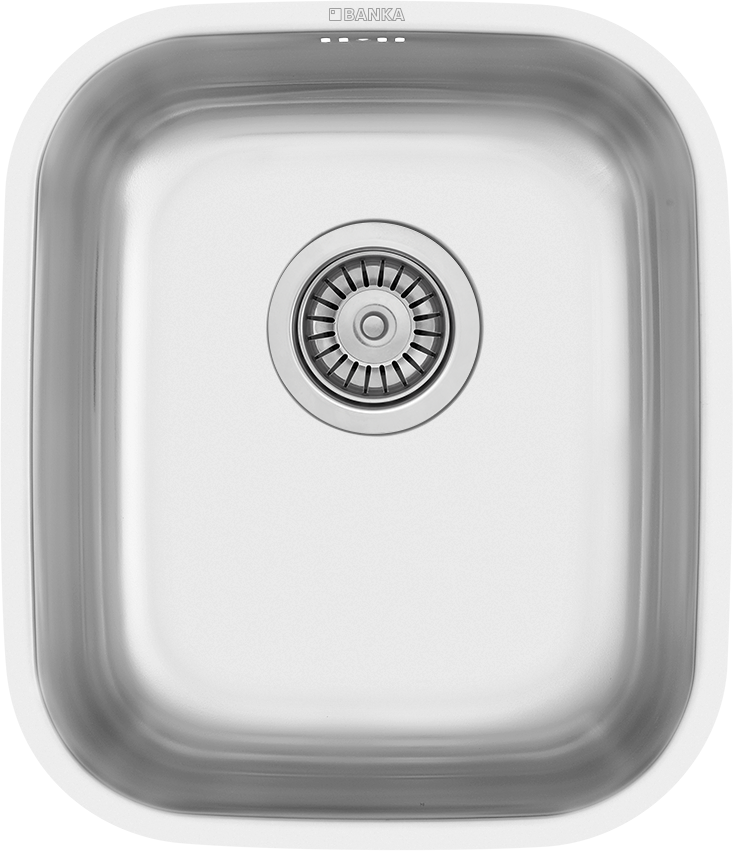

IBERICO 34
Total length 364 mm Width overall 424 mm Bowl length 340 mm Bowl width 400 mm Bowl depth 160/180/200 mm Minimum cabinet size 450 mm

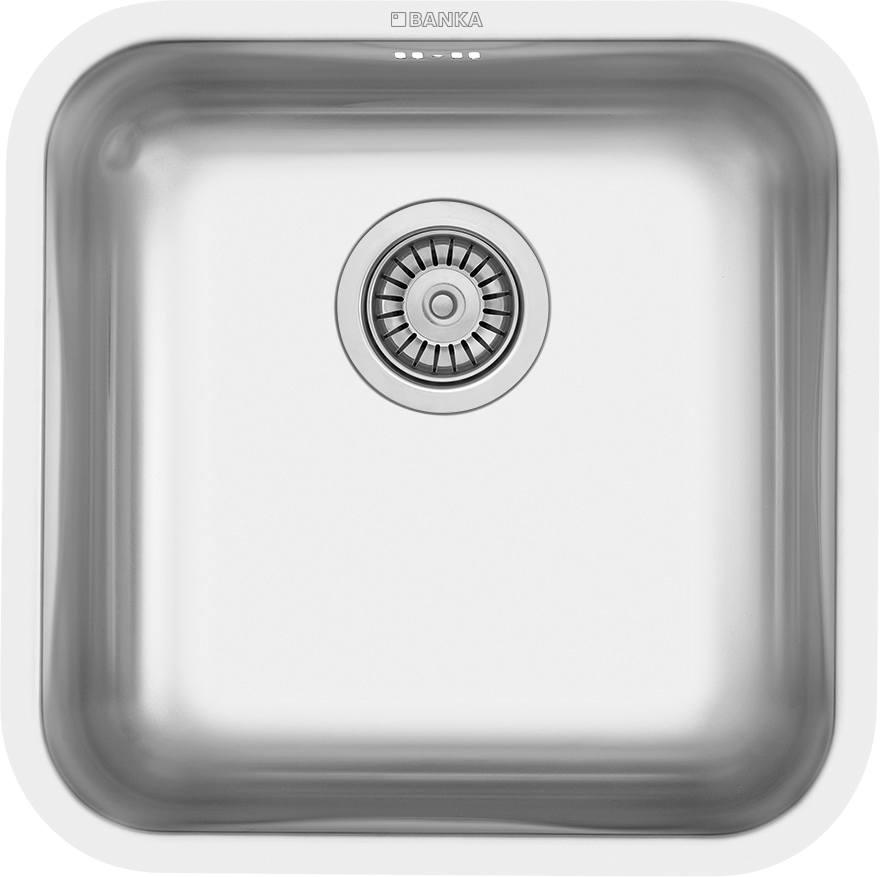

IBERICO 40
Total length 447 mm Width overall 447 mm Bowl length 400 mm Bowl width 400 mm Bowl depth 160/180/200 mm Minimum cabinet size 500 mm

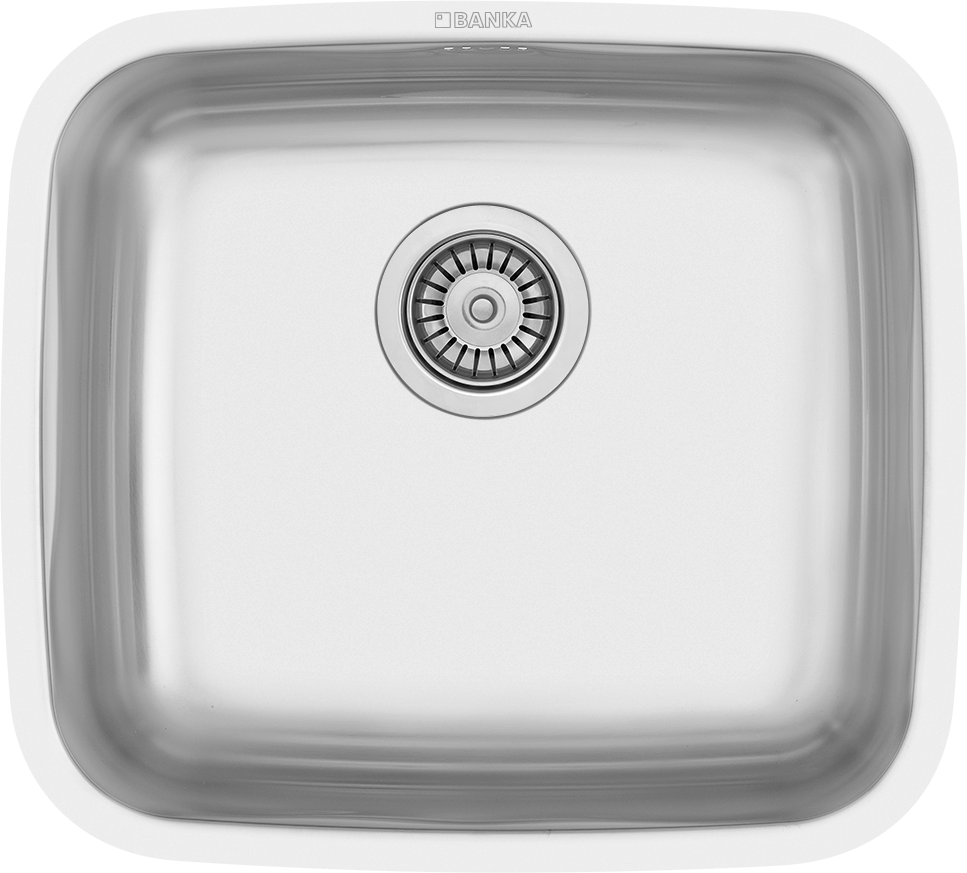

IBERICO 45
Total length 497 mm Width overall 447 mm Bowl length 450 mm Bowl width 400 mm Bowl depth 160/180/200 mm Minimum cabinet size 500 mm

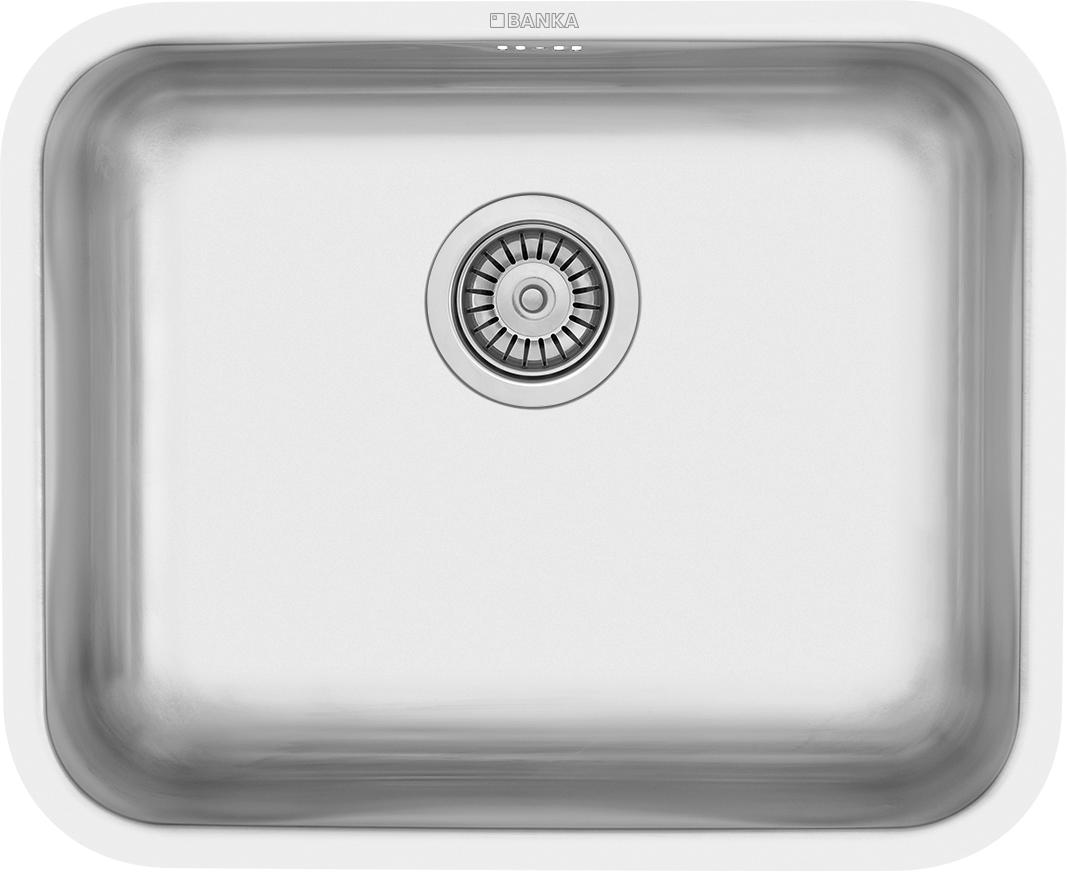

IBERICO 50
Total length 548 mm Width overall 450 mm Bowl length 500 mm Bowl width 400 mm Bowl depth 160/180/200 mm Minimum cabinet size 600 mm

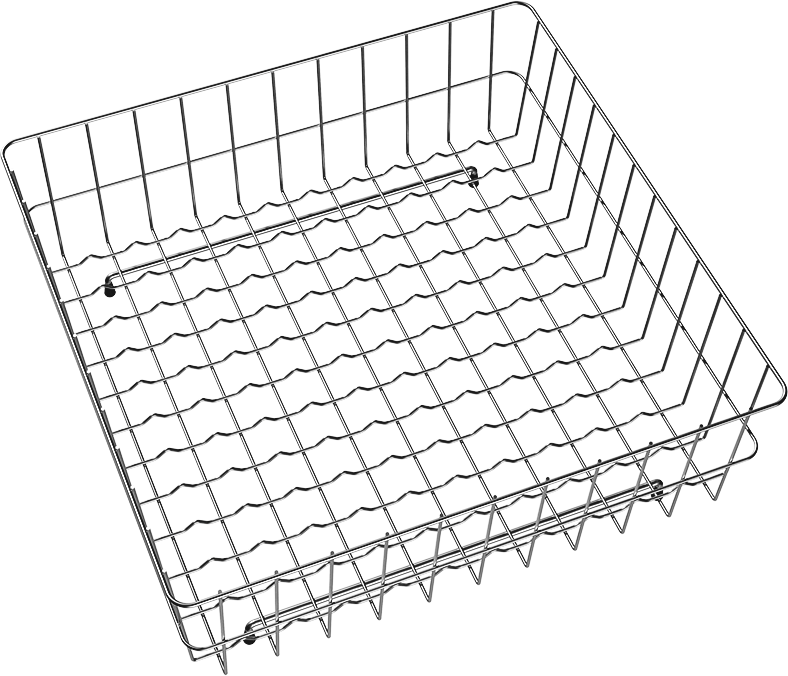

INOX BASKET
Total length 340 mm Width overall 350 mm

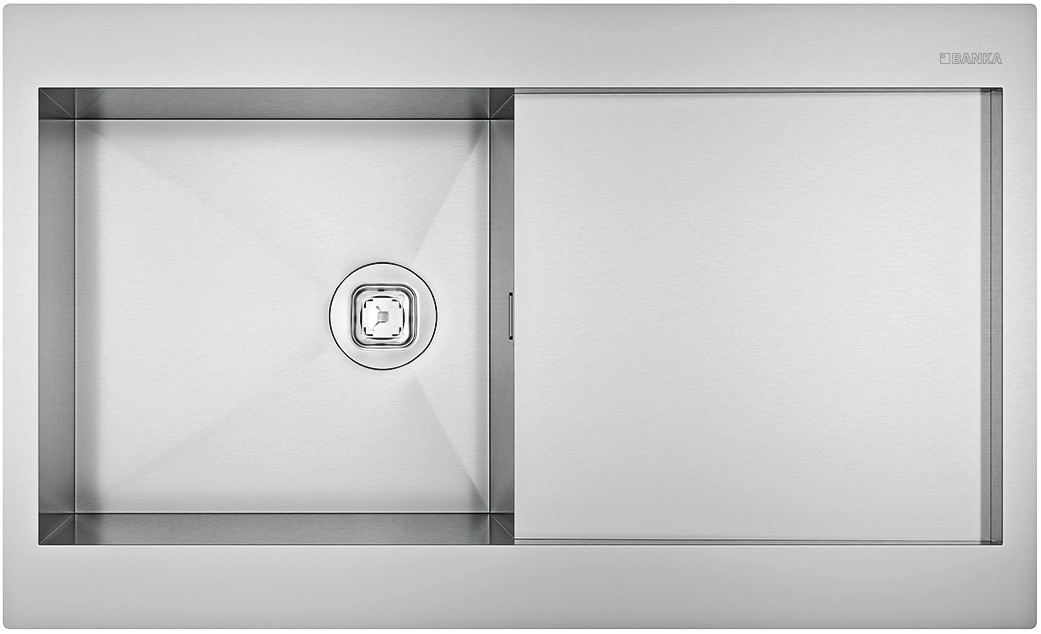

LASER
Total length 460 mm Width overall 520 mm Bowl length 400 mm Bowl width 380 mm Bowl depth 190 mm Minimum cabinet size 500 mm

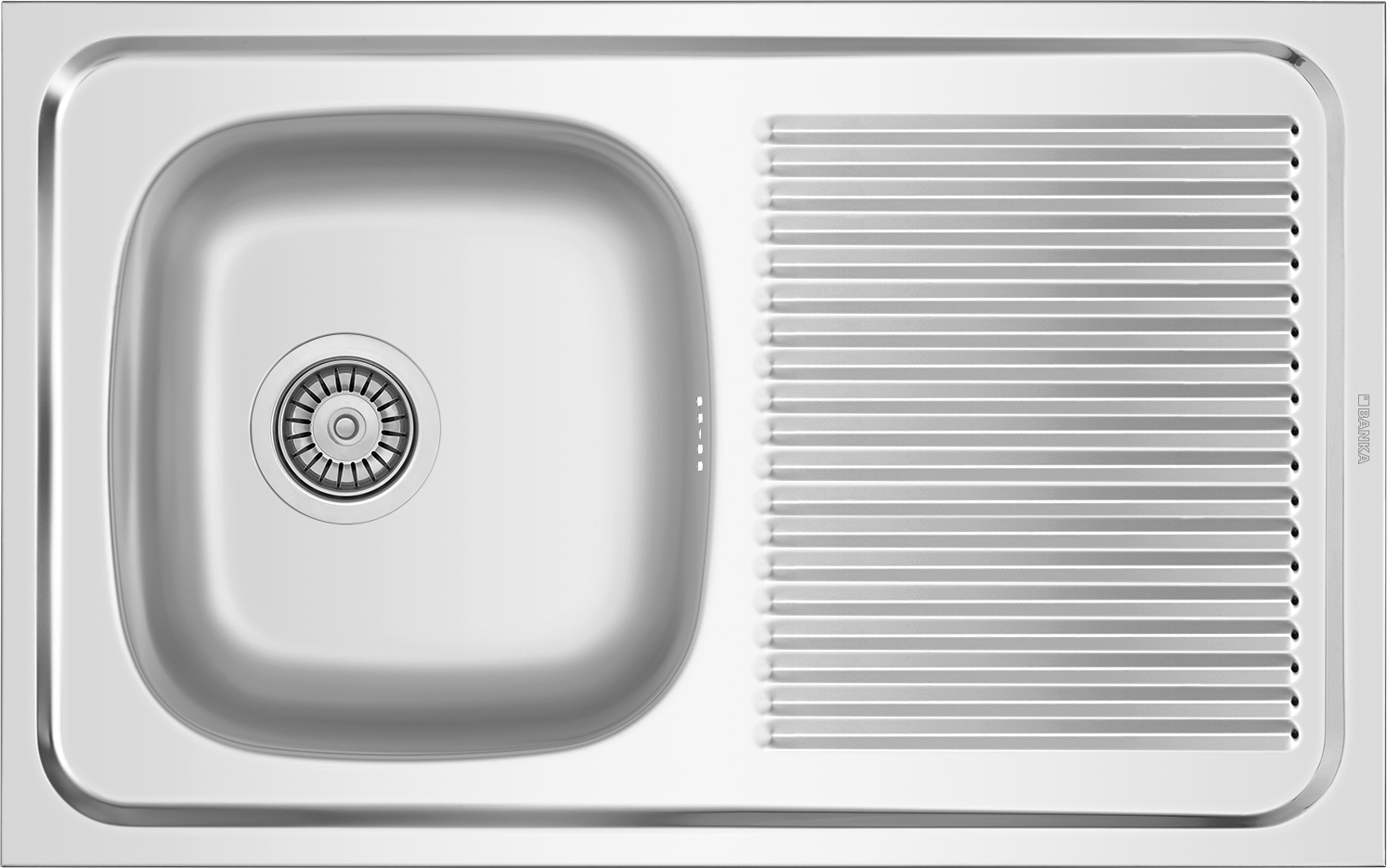

M1080
Total length 900/800 mm Width overall 600/500 mm Bowl length 340 mm Bowl width 365 mm Bowl depth 150 mm Minimum cabinet size 450 mm

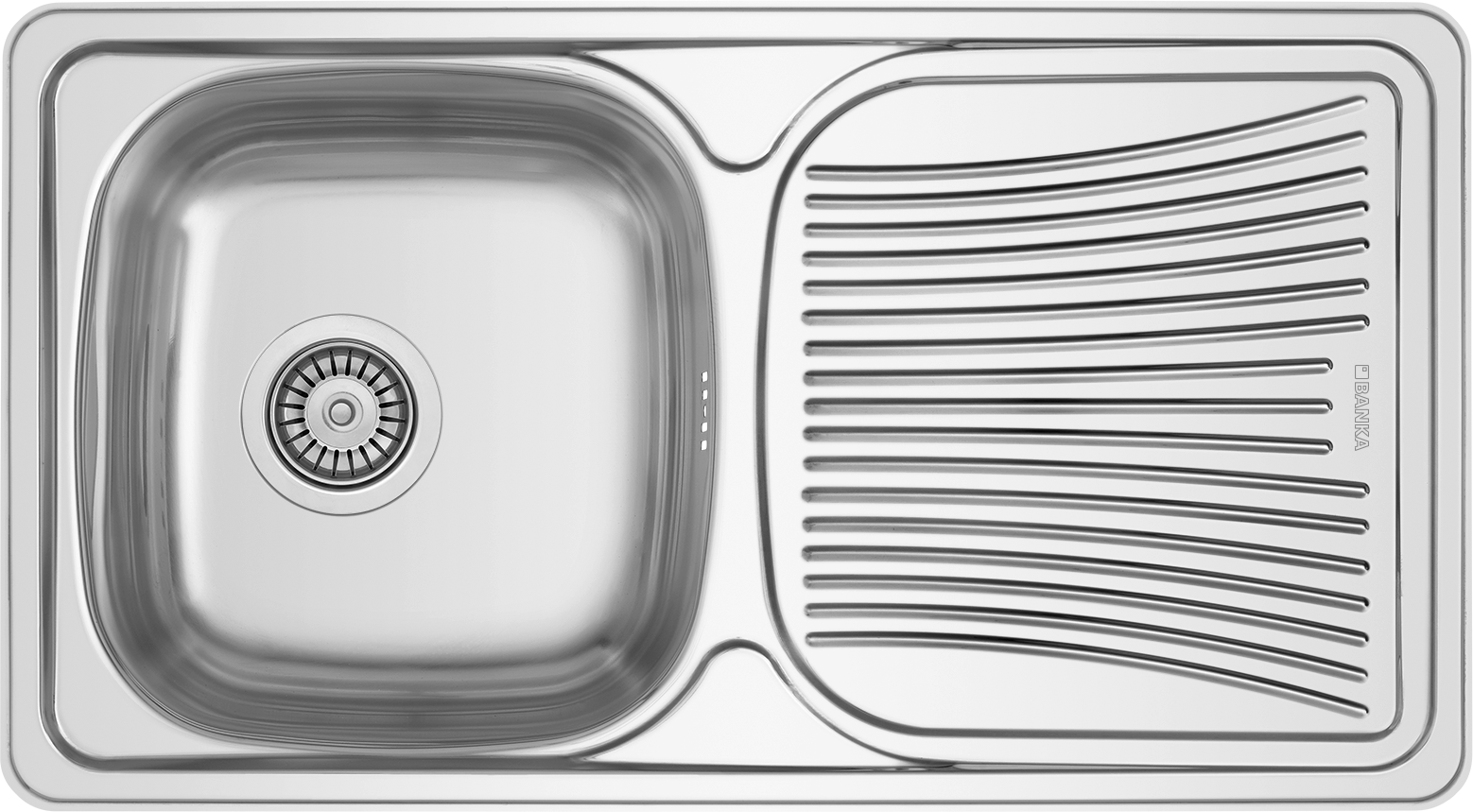

M1081
Total length 800 mm Width overall 435 mm Bowl length 340 mm Bowl width 365 mm Bowl depth 150 mm Minimum cabinet size 450 mm

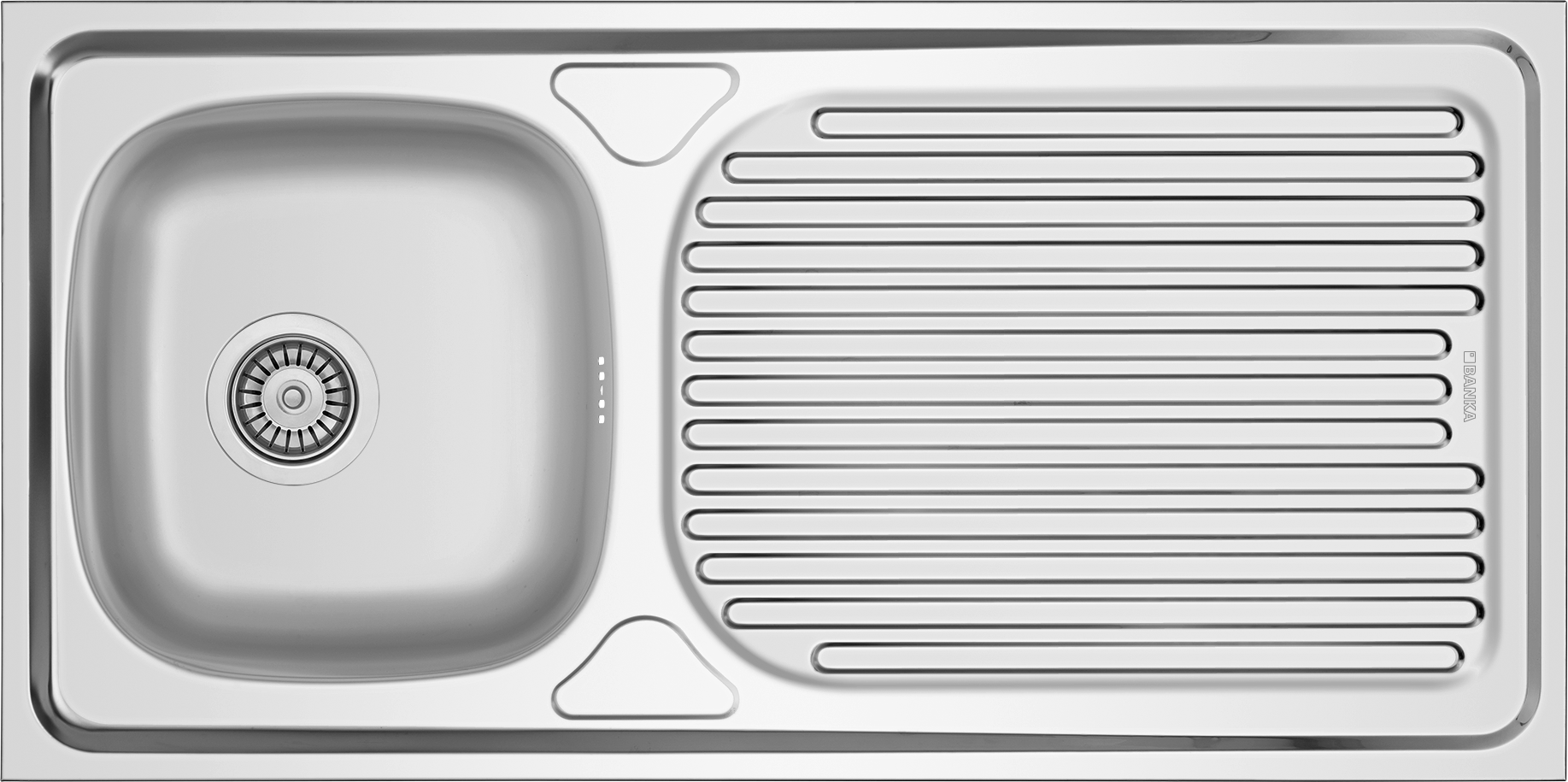

M1100
Total length 1200/1100/1000 mm Width overall 500/600 mm Bowl length 340 mm Bowl width 365 mm Bowl depth 150 mm Minimum cabinet size 450 mm

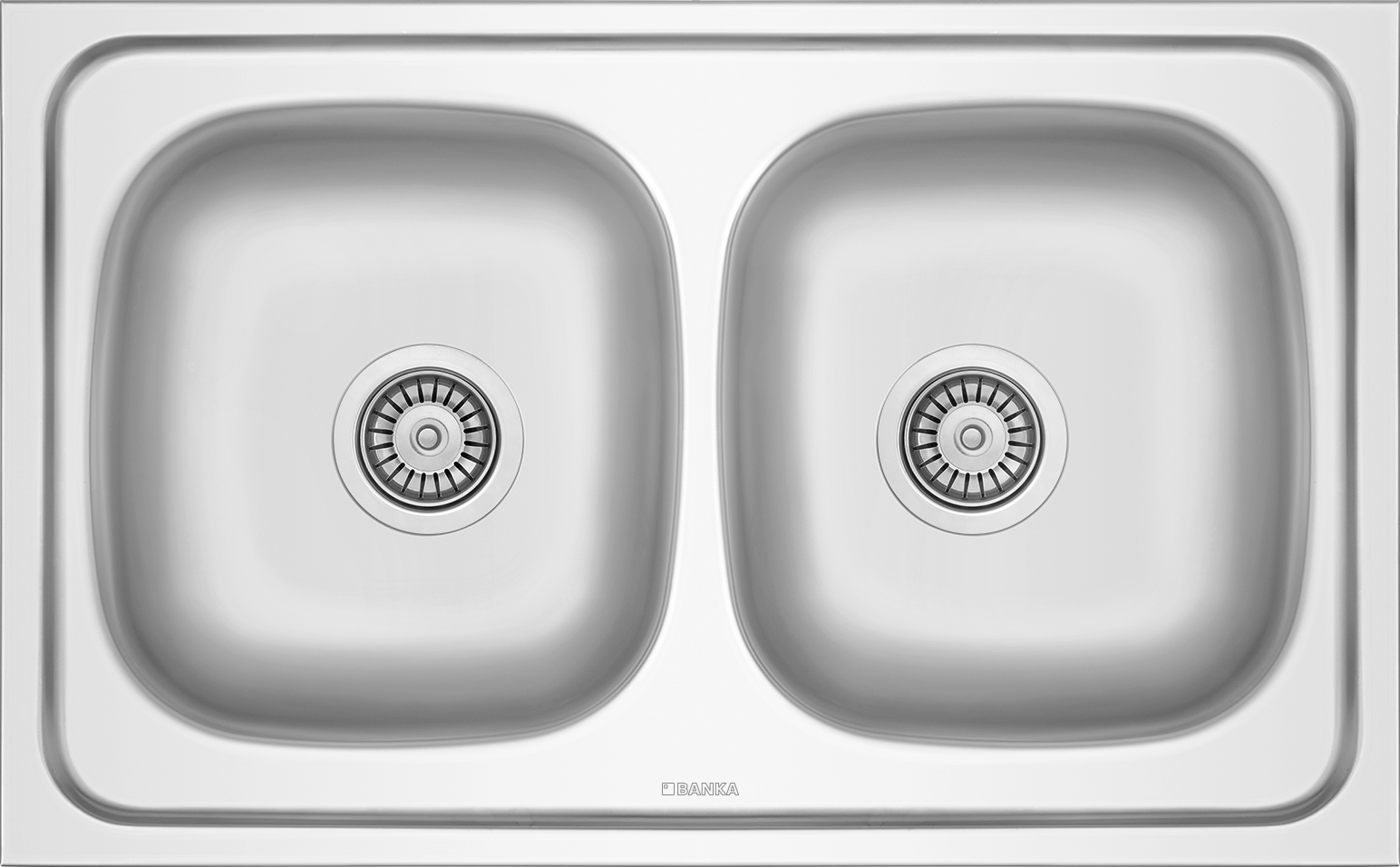

M2080
Total length 800 mm Width overall 600/500 mm Bowl length 335 mm Bowl width 365 mm Bowl depth 150 mm Minimum cabinet size 500 mm

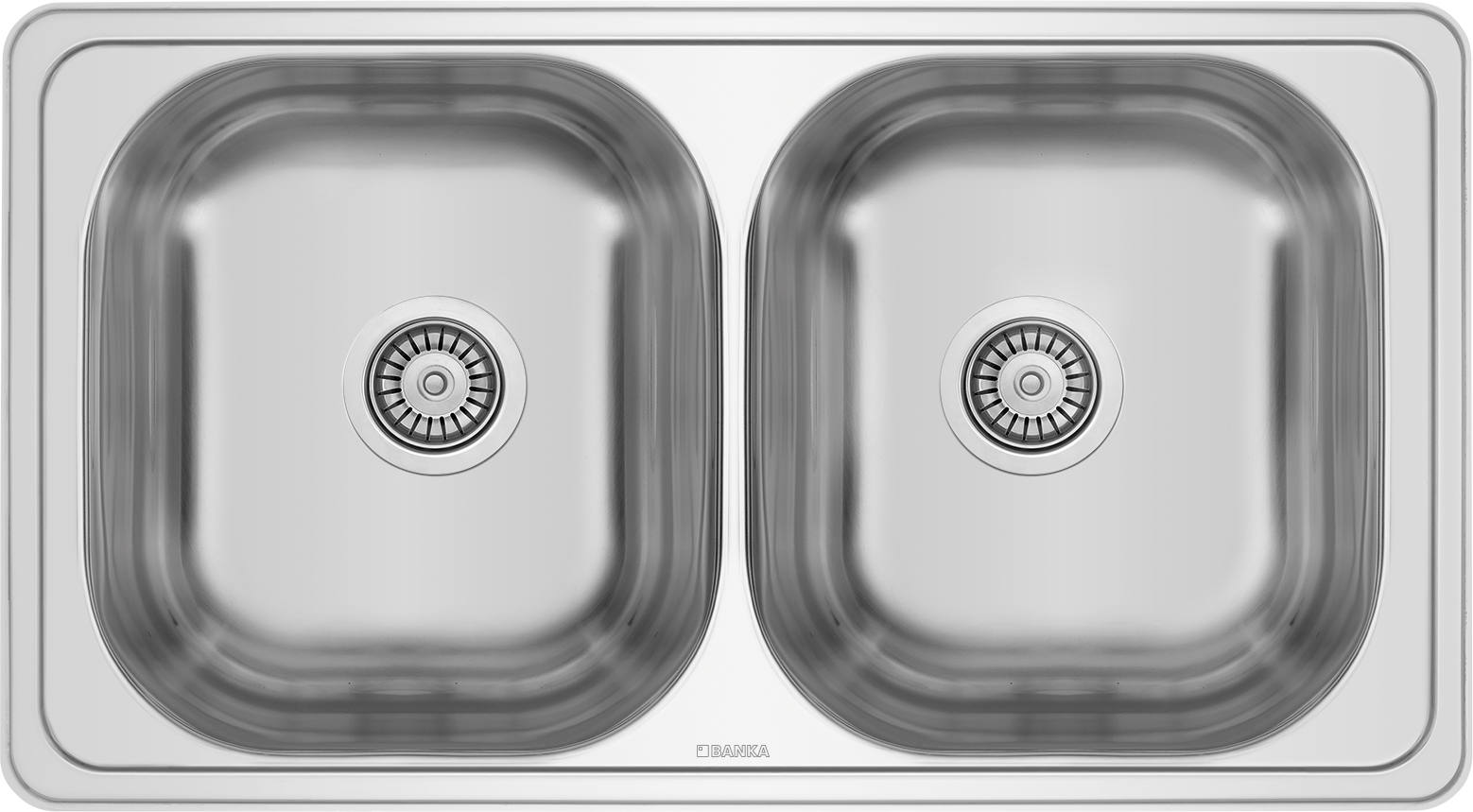

M2081
Total length 800 mm Width overall 440 mm Bowl length 335 mm Bowl width 365 mm Bowl depth 150 mm Minimum cabinet size 450 mm

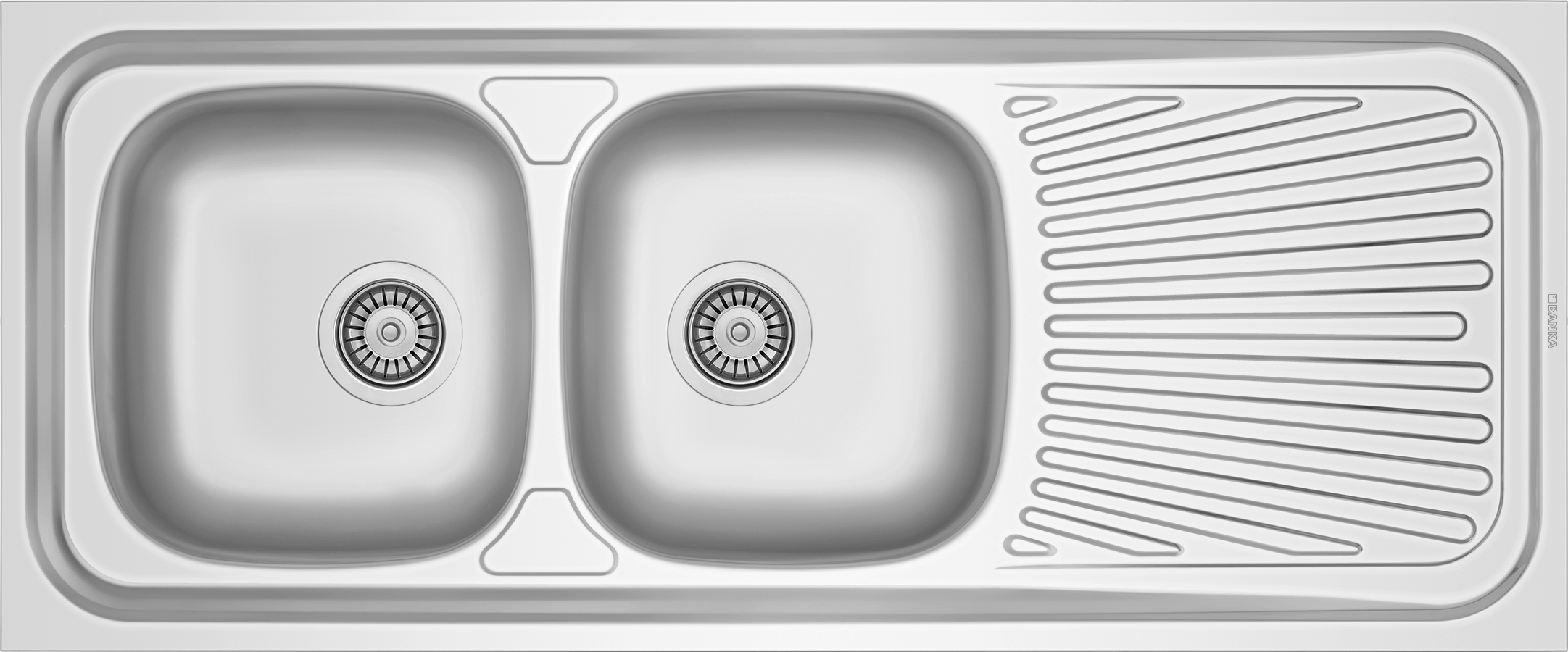

M3120
Total length 1200/1300/1350/1400 mm Width overall 500/600 mm Bowl length 335 mm Bowl width 365 mm Bowl depth 150 mm Minimum cabinet size 800 mm

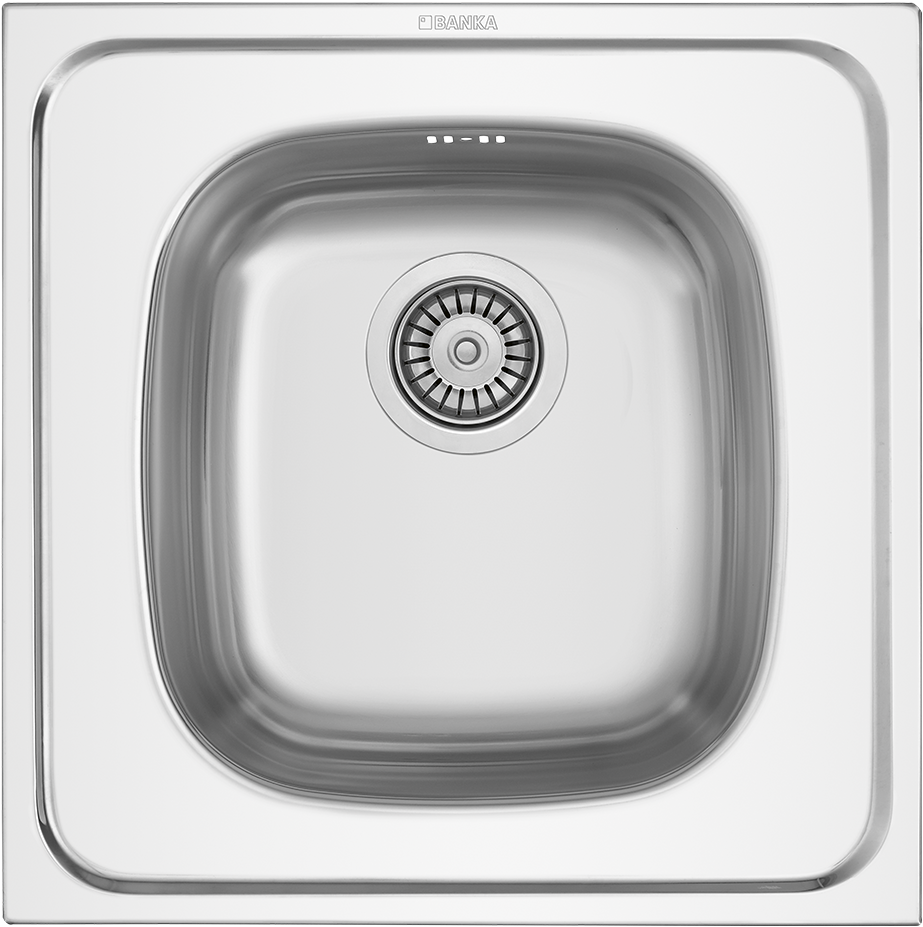

M4050
Total length 500 mm Width overall 500 mm Bowl length 365 mm Bowl width 340 mm Bowl depth 150 mm Minimum cabinet size 600 mm

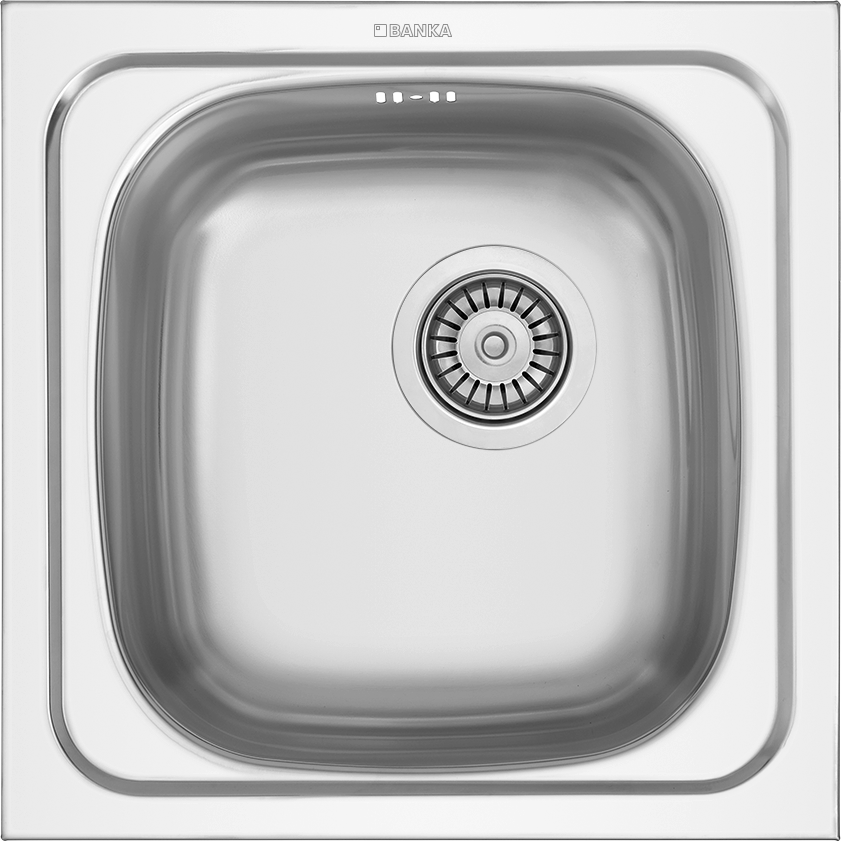

M4450
Total length 450 mm Width overall 450 mm Bowl length 365 mm Bowl width 340 mm Bowl depth 150 mm Minimum cabinet size 600 mm

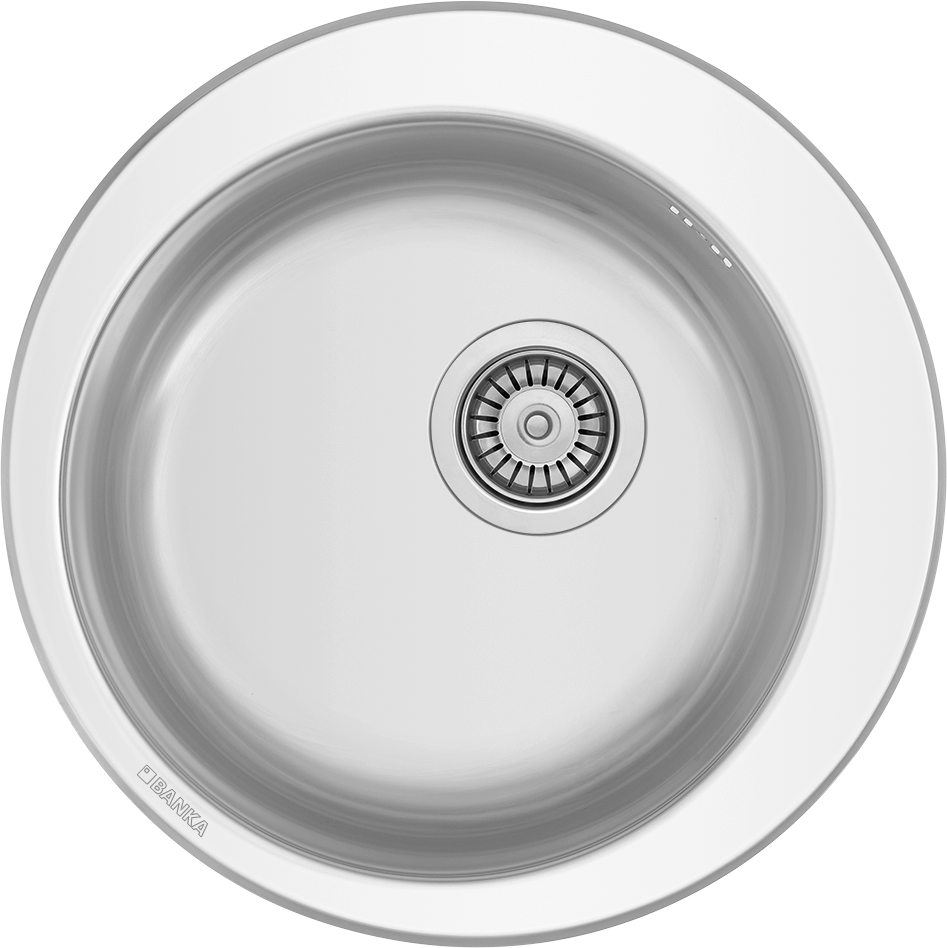

M5000
Total diameter Ø 480 mm Bowl diameter Ø 380 mm Bowl depth 160 mm Minimum cabinet size 600 mm

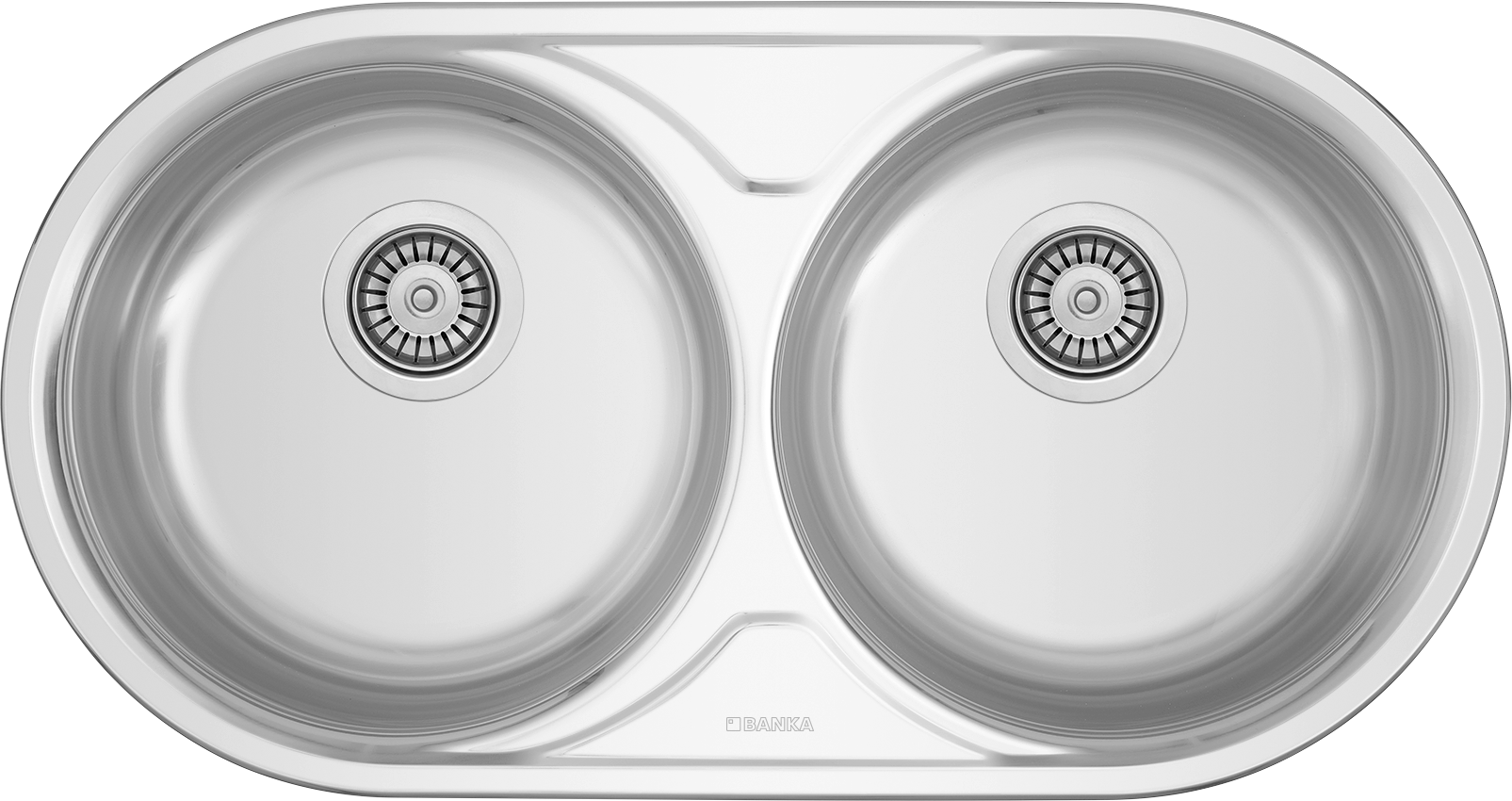

M6045
Total length 835 mm Width overall 440 mm Bowl diameter Ø 365 mm Bowl depth 150 mm Minimum cabinet size 800 mm

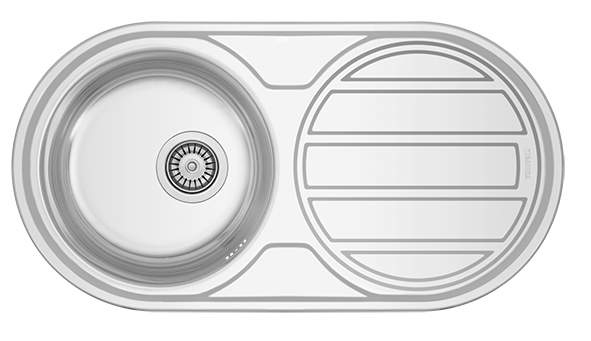

M7045
Total length 835 mm Width overall 440 mm Bowl diameter Ø 380 mm Bowl depth 150 mm Minimum cabinet size 600 mm

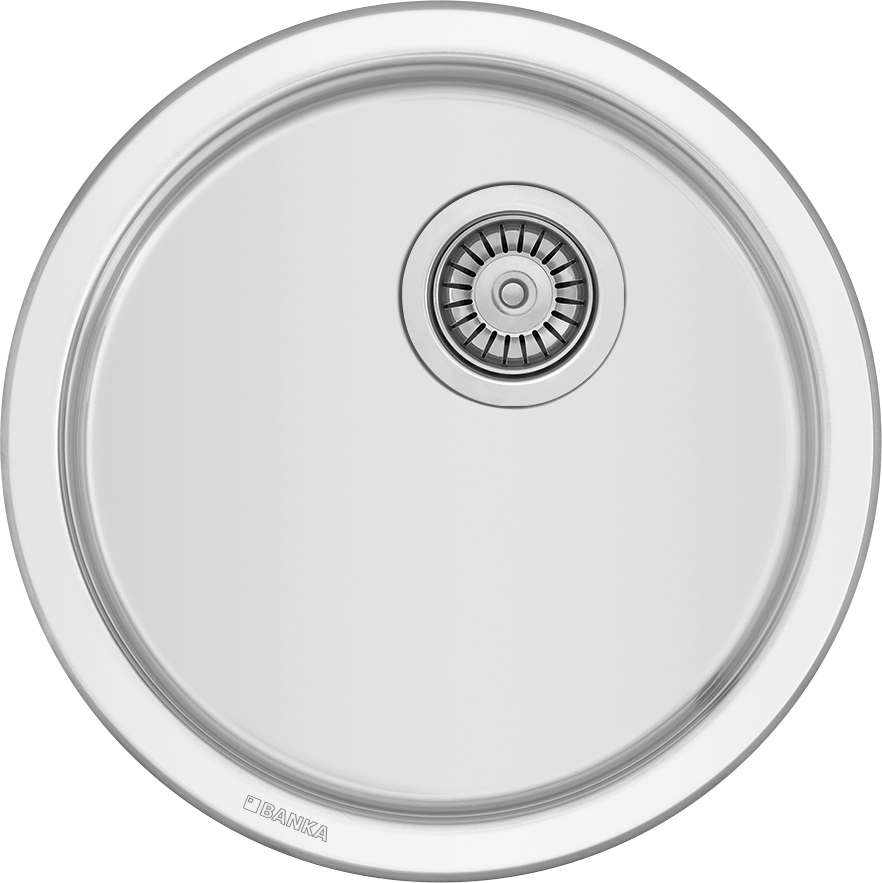

M8040
Total length Ø 450 mm Bowl diameter Ø 380 mm Bowl depth 40 mm Minimum cabinet size 450 mm

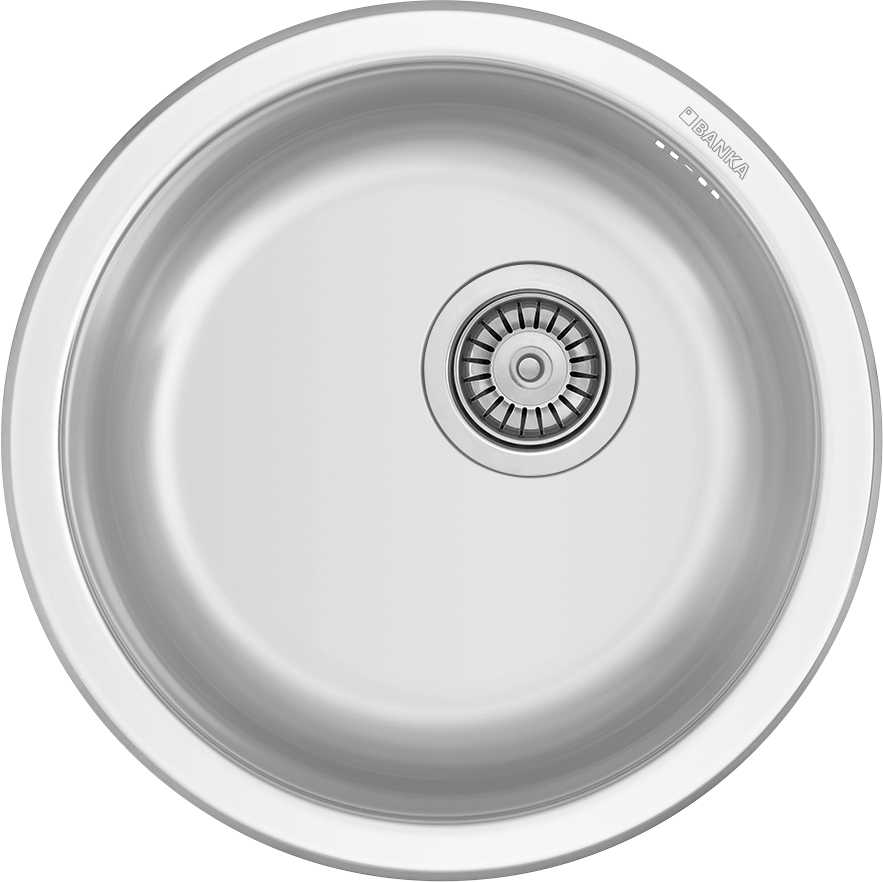

M8160
Total diameter Ø 450 mm Bowl diameter Ø 380 mm Bowl depth 160 mm Minimum cabinet size 450 mm

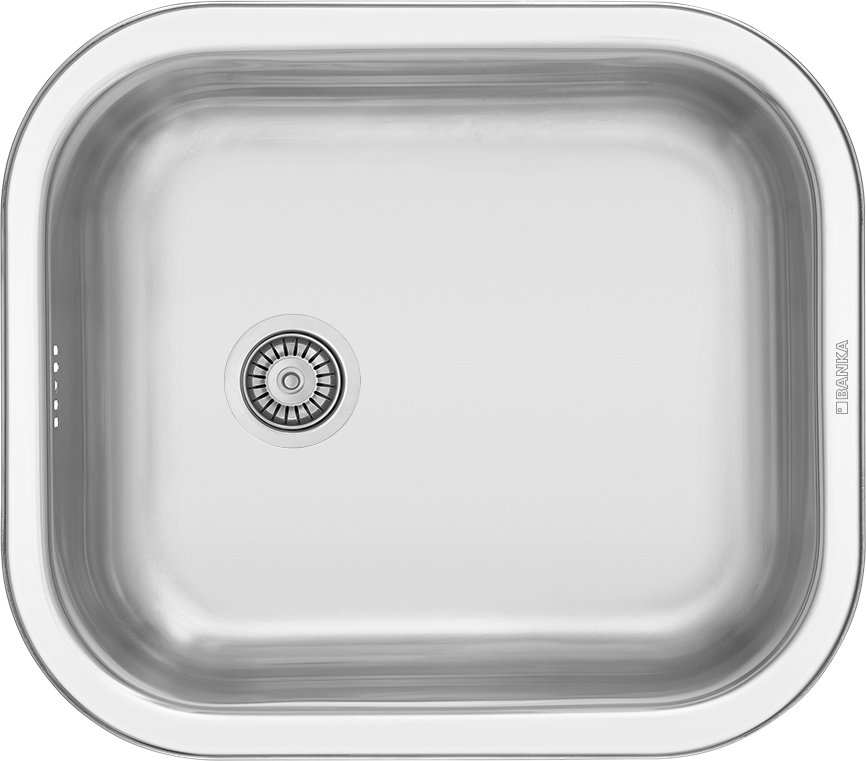

M9046
Total length 457 mm Width overall 400 mm Bowl length 402 mm Bowl width 345 mm Bowl depth 160 mm Minimum cabinet size 600 mm
M9054
Total length 542 mm Width overall 402 mm Bowl length 482 mm Bowl width 345 mm Bowl depth 160 mm Minimum cabinet size 600 mm

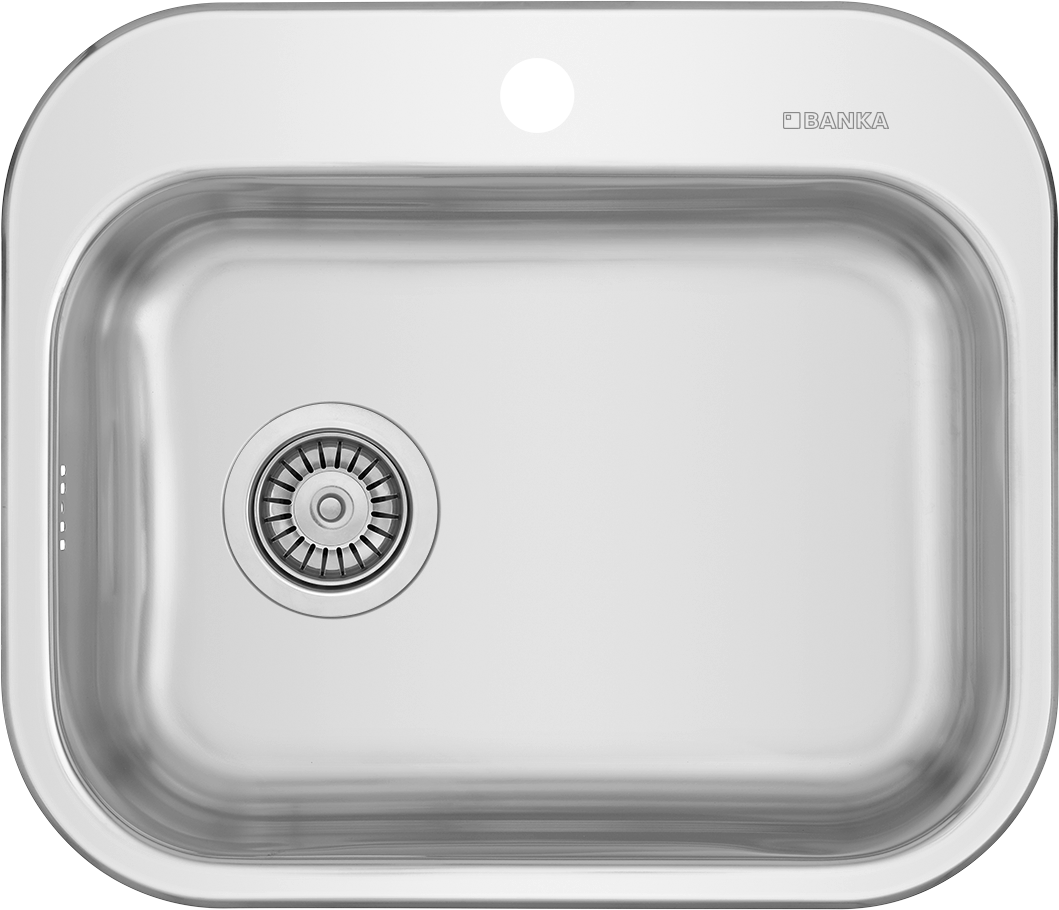

M9055
Total length 540 mm Width overall 460 mm Bowl length 482 mm Bowl width 345 mm Bowl depth 160 mm Minimum cabinet size 600 mm

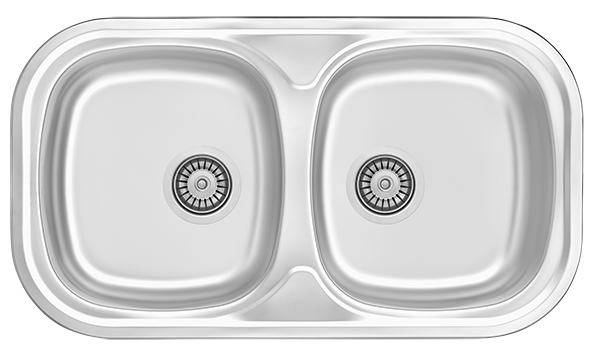

M10000
Total length 800 mm Width overall 450 mm Bowl length 340 mm Bowl width 370 mm Bowl depth 160 mm Minimum cabinet size 900 mm

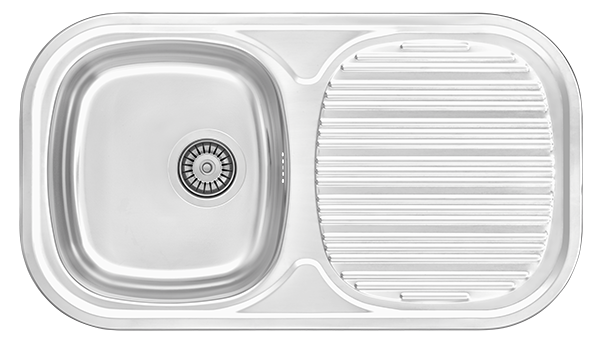

M11000
Total length 800 mm Width overall 450 mm Bowl length 340 mm Bowl width 370 mm Bowl depth 160 mm Minimum cabinet size 500 mm

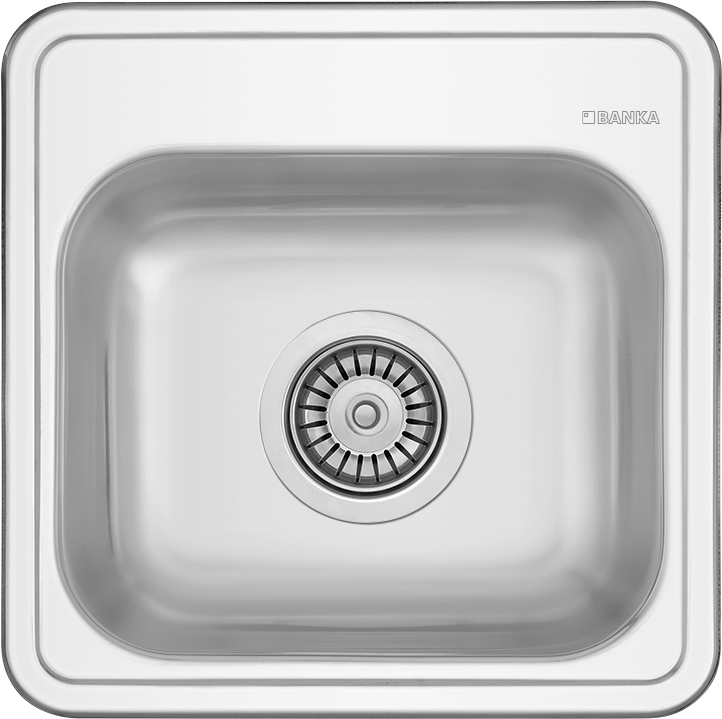

M12000
Total length 381 mm Width overall 381 mm Bowl length 317 mm Bowl width 265 mm Bowl depth 153/178 mm Minimum cabinet size 450 mm

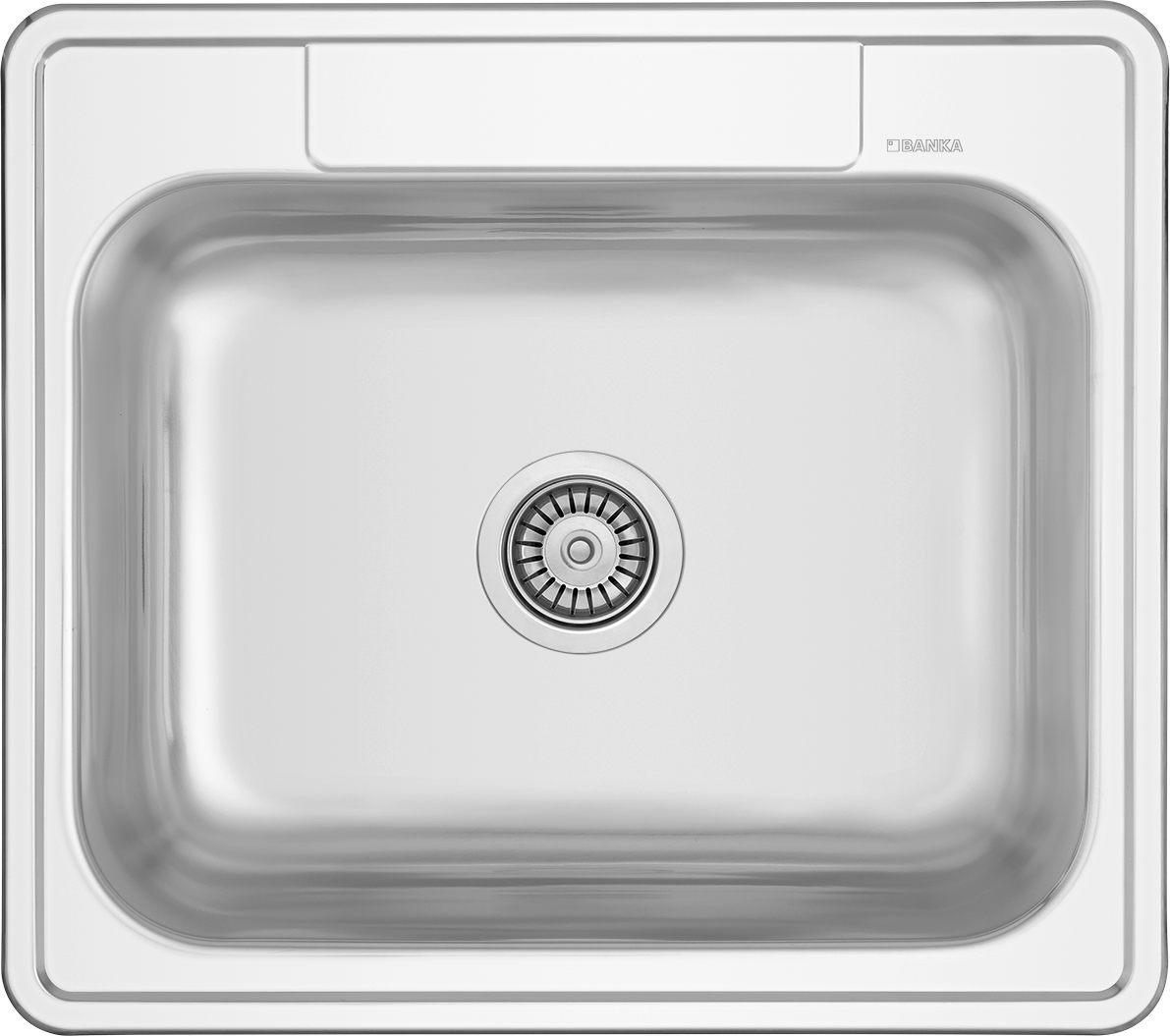

M13000
Total length 635 mm Width overall 559 mm Bowl length 543 mm Bowl width 408 mm Bowl depth 153/178/203 mm Minimum cabinet size 500 mm

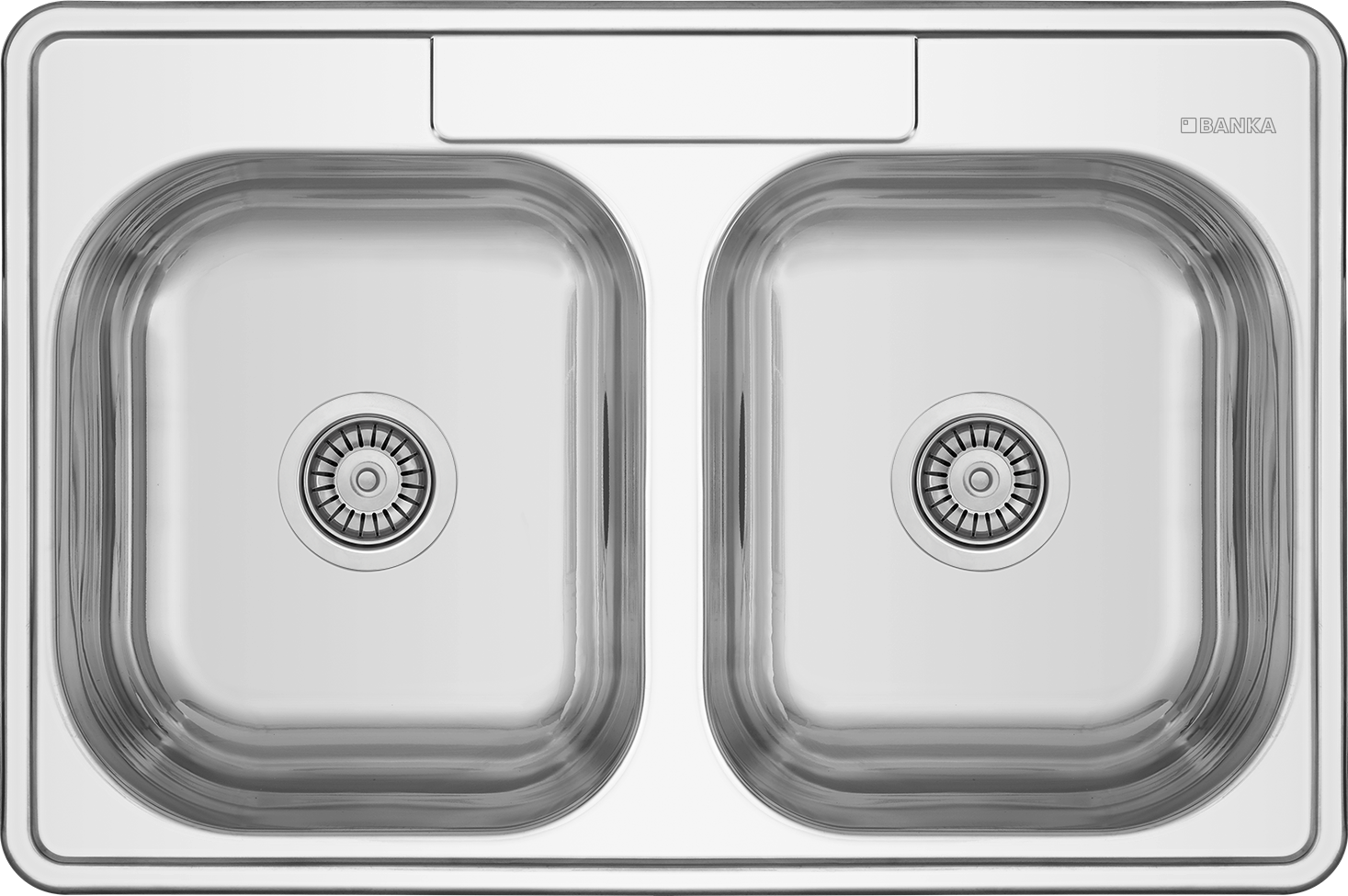

M14000
Total length 838 mm Width overall 559 mm Bowl length 362 mm Bowl width 418 mm Bowl depth 203/178/153 mm Minimum cabinet size 800 mm
M16000 E
Total length 1800/1600/1500 mm Width overall 510 mm Bowl length 365 mm Bowl width 365 mm Bowl depth 150 mm Minimum cabinet size 500 mm

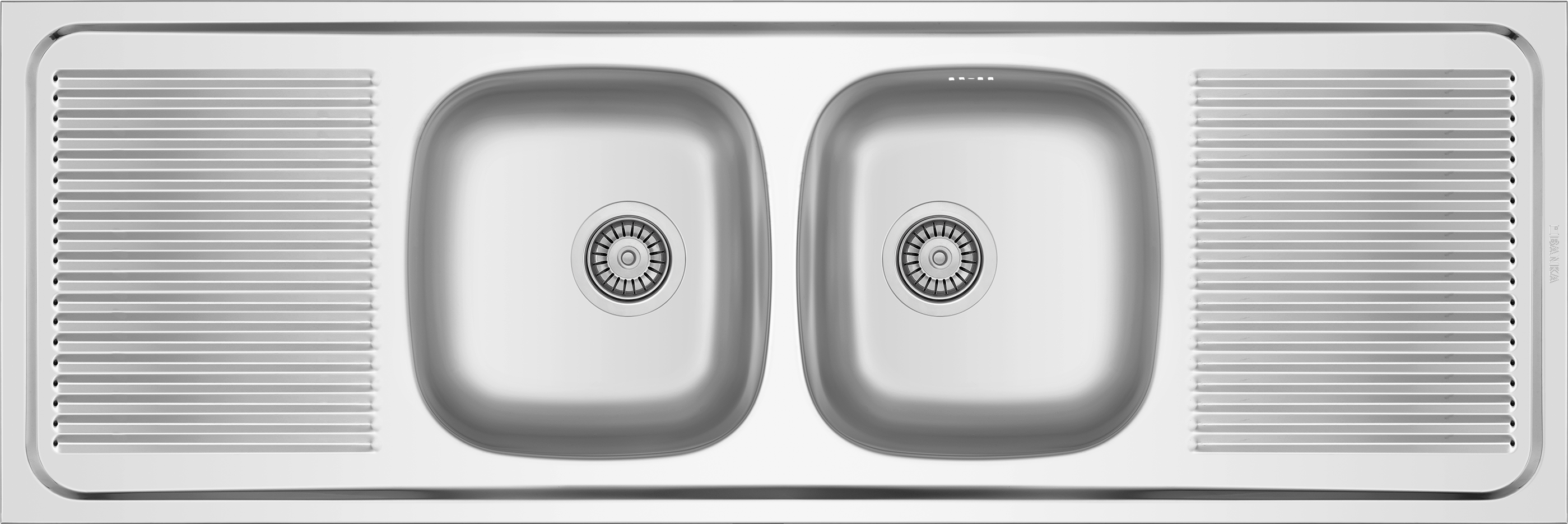

M16000 N
Total length 1800/1600/1500 mm Width overall 600/500 mm Bowl length 365 mm Bowl width 365 mm Bowl depth 150 mm Minimum cabinet size 500 mm

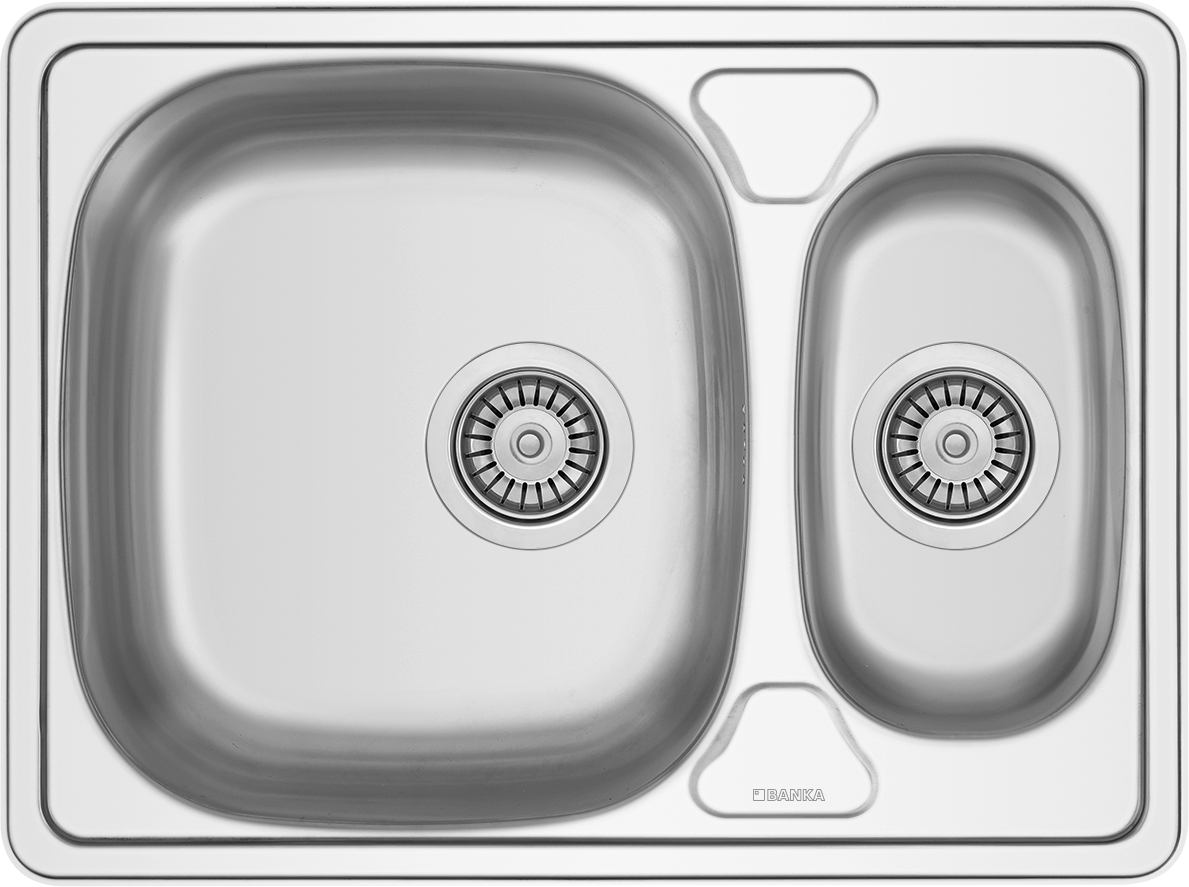

M17000
Total length 630 mm Width overall 470 mm Big Bowl length 360 mm Small Bowl length 170 mm Big Bowl width 400 mm Small Bowl width 307 mm Bowl depth 150/90 mm Minimum cabinet size 600 mm

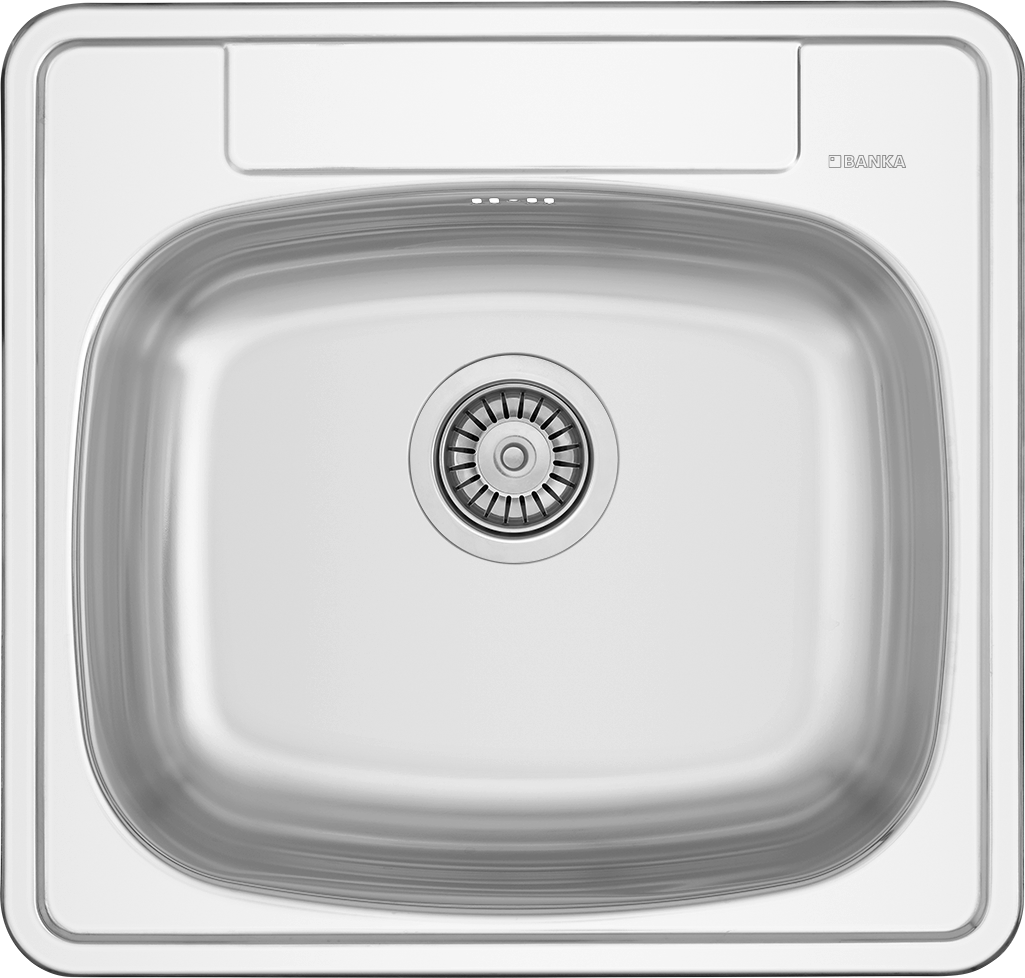

M19000
Total length 534 mm Width overall 508 mm Bowl length 450 mm Bowl width 370 mm Bowl depth 153/178 mm Minimum cabinet size 600 mm

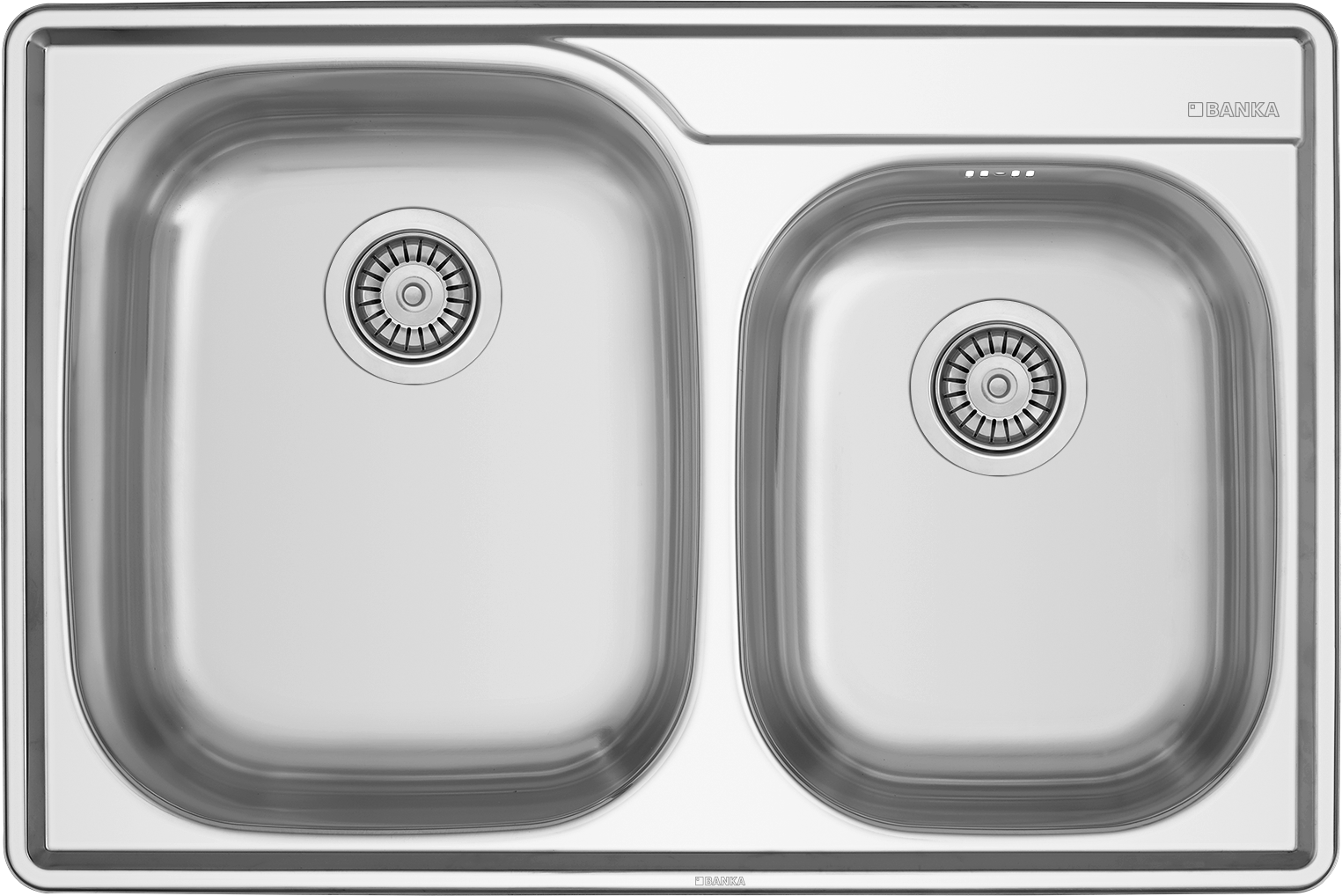

M21000
Total length 840 mm Width overall 560 mm Big Bowl length 392 mm Small Bowl length 334 mm Big Bowl width 475 mm Small Bowl width 415 mm Depth of big sink 203/178 mm Depth of small sink 178/153 mm Minimum cabinet size 800 mm

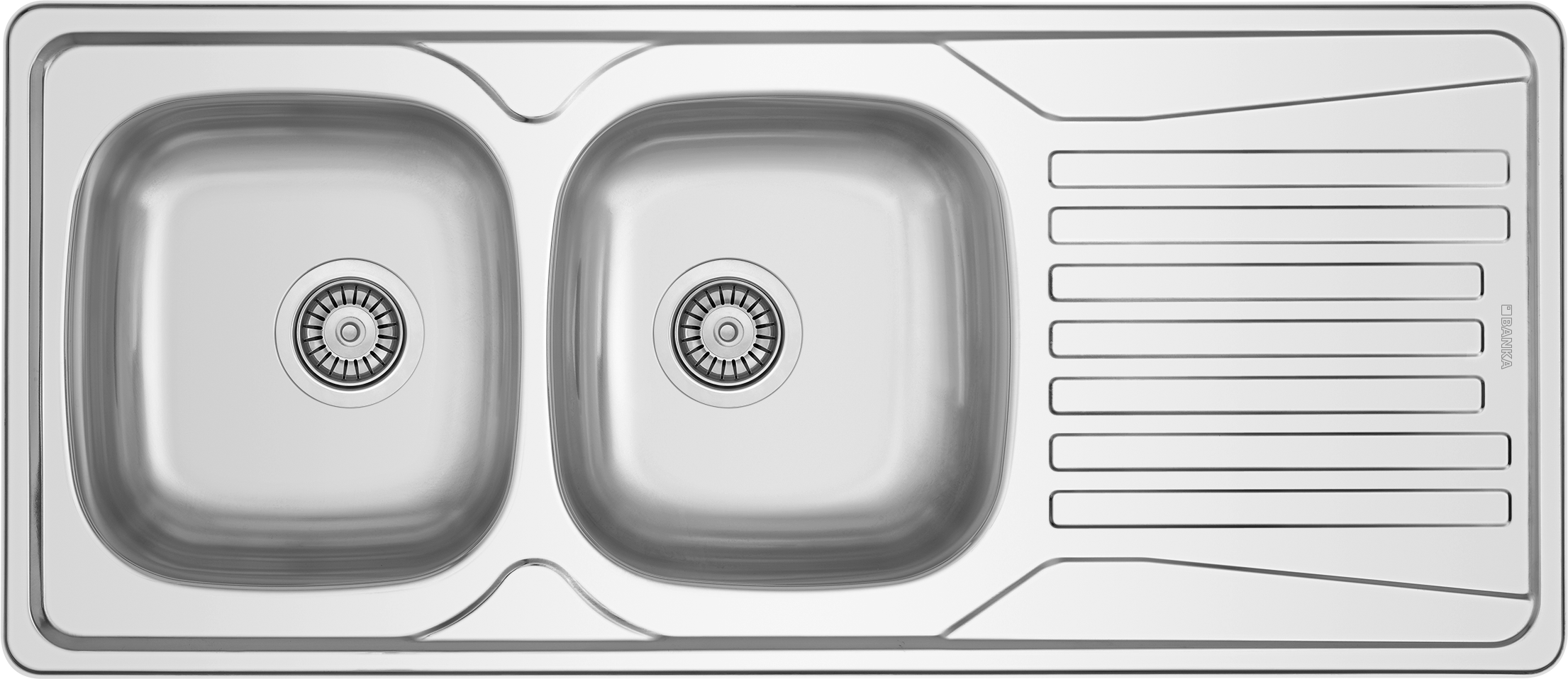

M26000
Total length 1160 mm Width overall 504 mm Bowl length 335 mm Bowl width 365 mm Bowl depth 160 mm Minimum cabinet size 800 mm

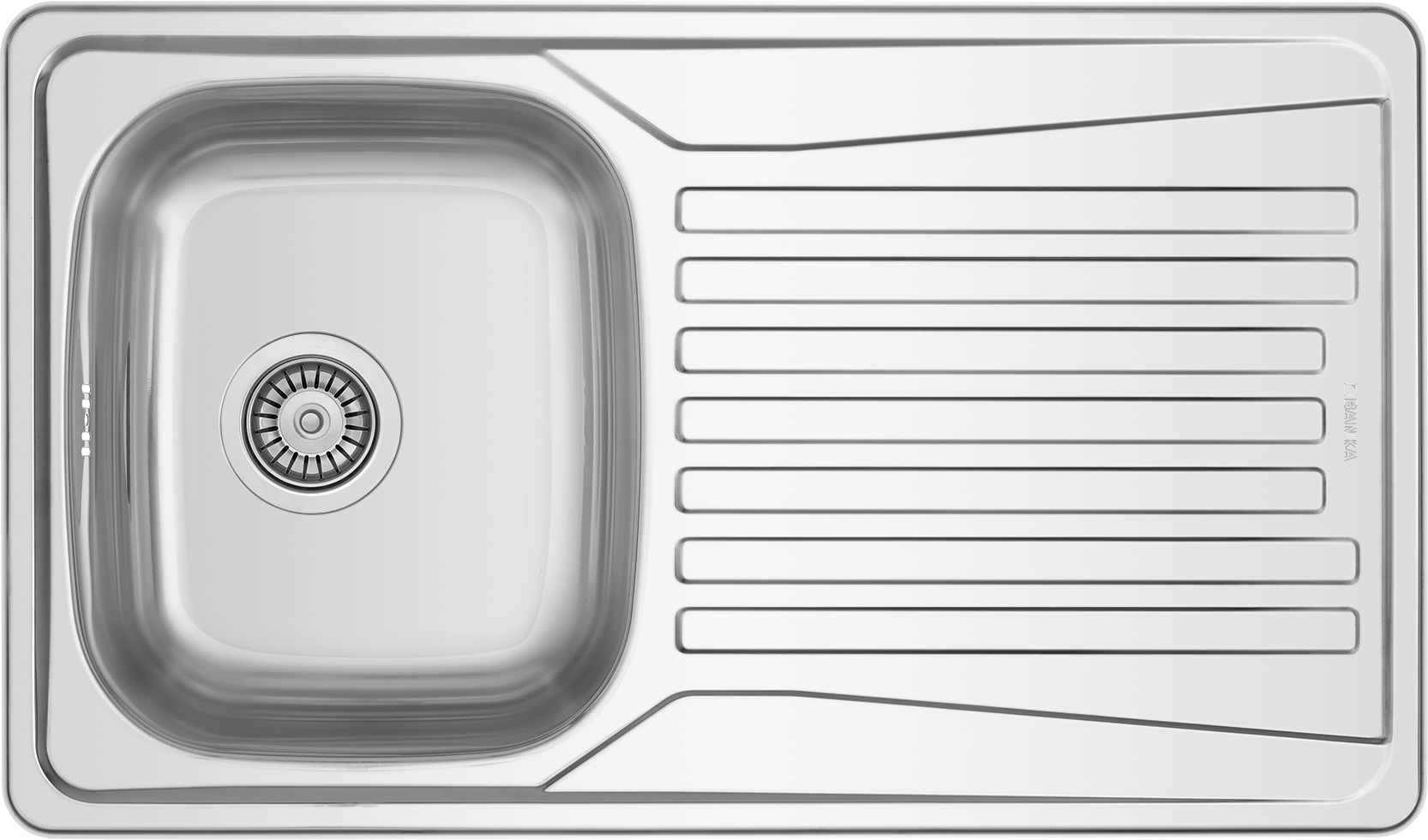

M28000
Total length 864 mm Width overall 504 mm Bowl length 340 mm Bowl width 400 mm Bowl depth 170 mm Minimum cabinet size 450 mm

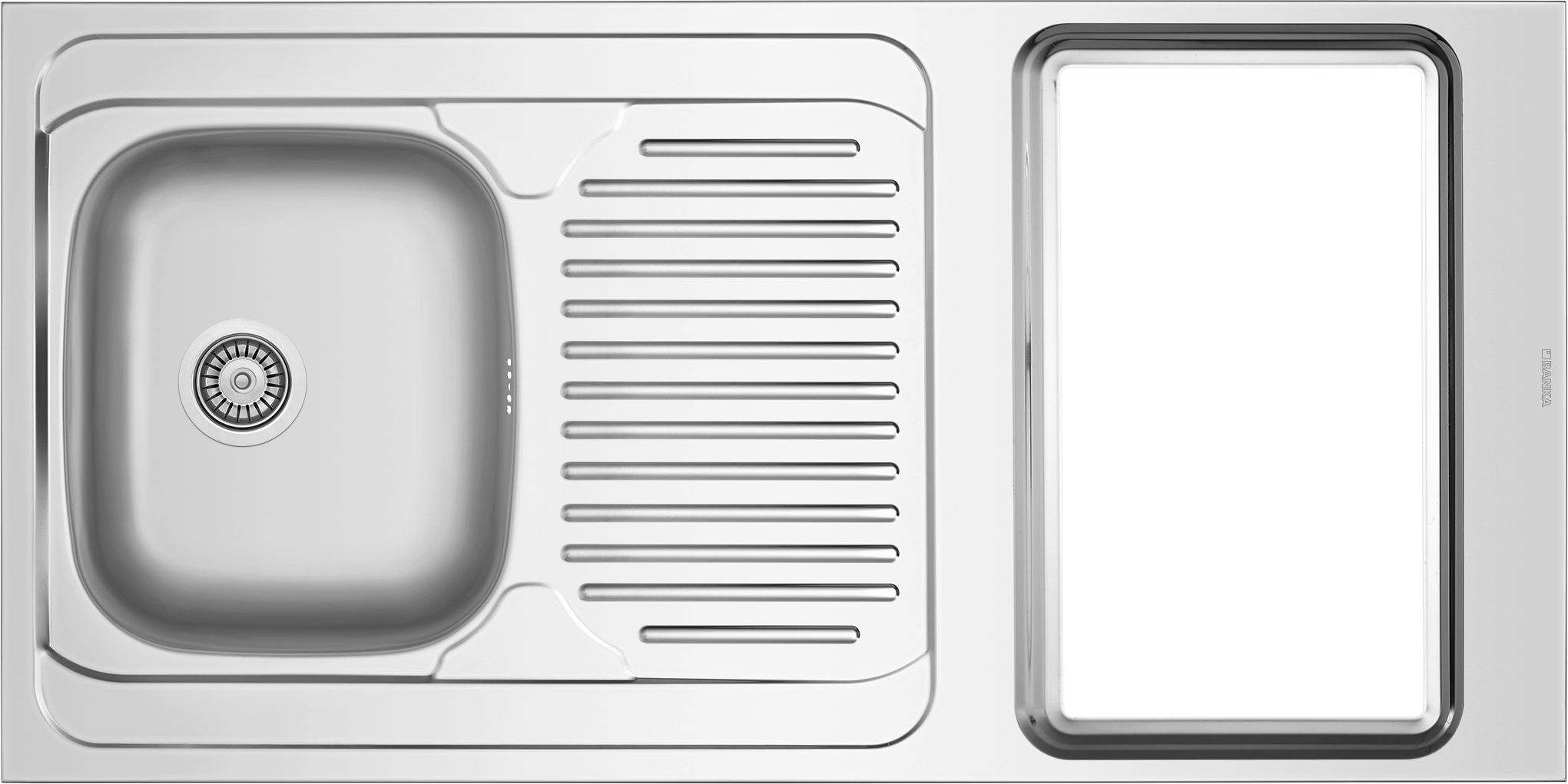

M29000
Total length 1200 mm Width overall 600 mm Bowl length 340 mm Bowl width 400 mm Bowl depth 145 mm Minimum cabinet size 600 mm

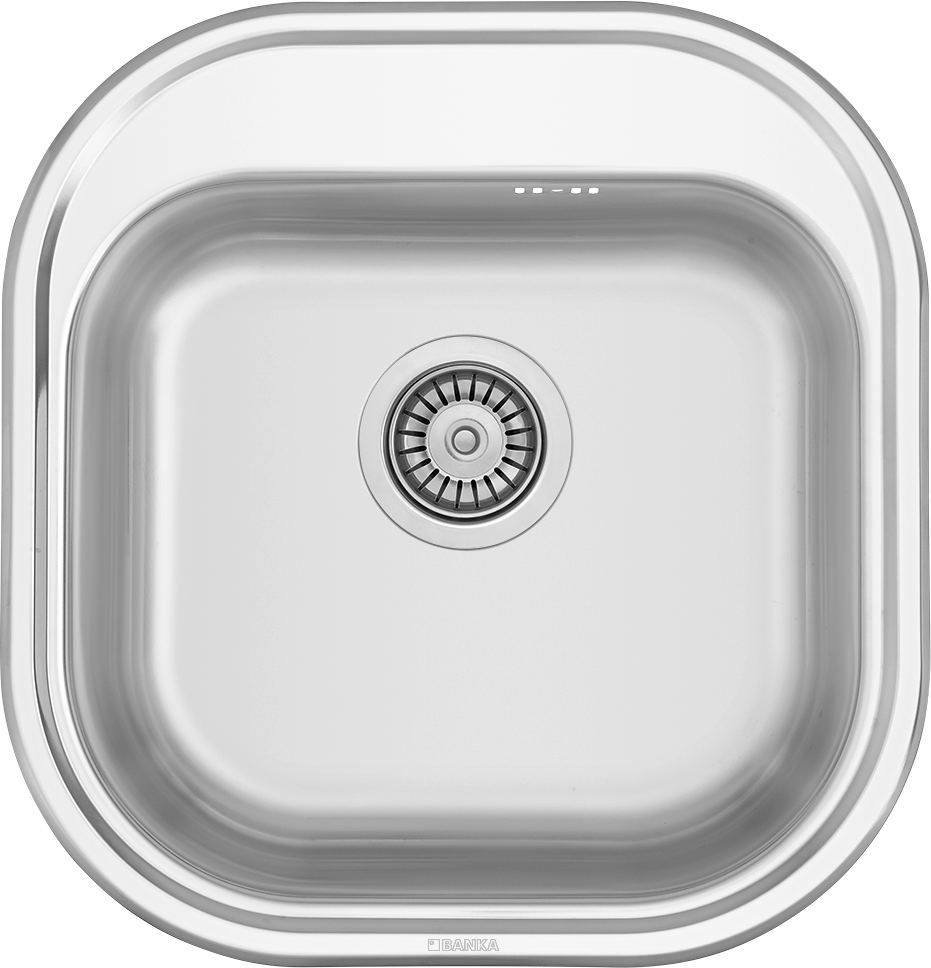

M32001
Total length 465 mm Width overall 485 mm Bowl length 400 mm Bowl width 360 mm Bowl depth 165 mm Minimum cabinet size 500 mm

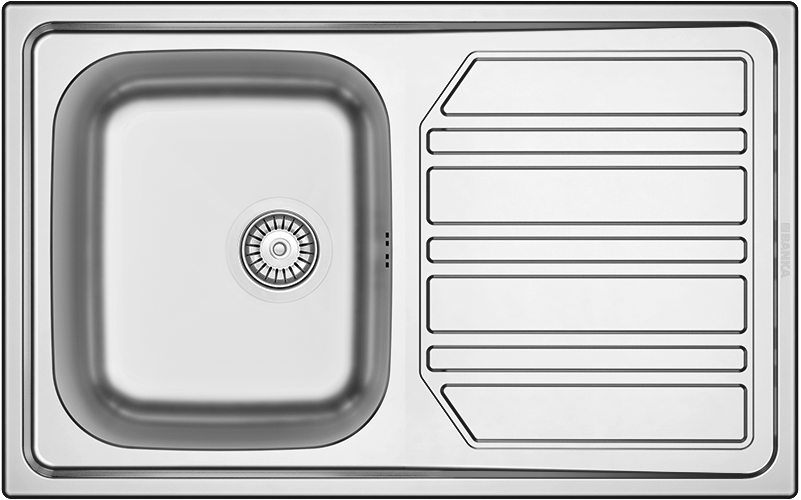

MEZZO 80-1
Total length 800 mm Width overall 500 mm Bowl length 340 mm Bowl width 400 mm Bowl depth 200 mm Minimum cabinet size 450 mm

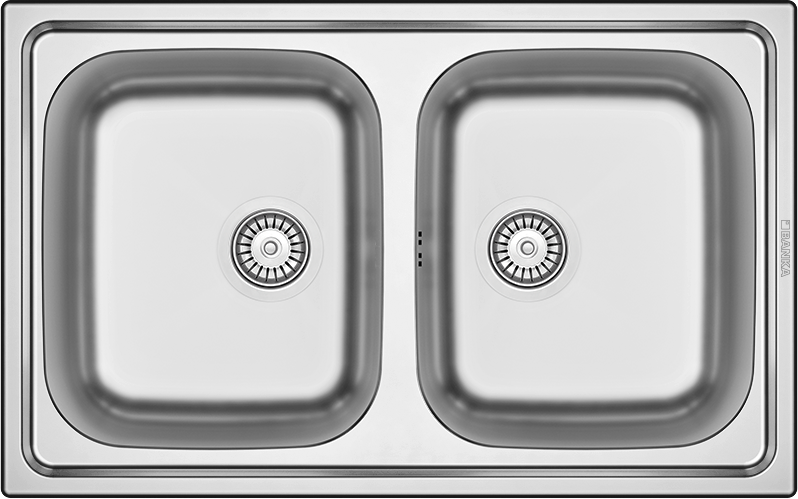

MEZZO 80-2
Total length 800 mm Width overall 500 mm Bowl length 340 mm Bowl width 400 mm Bowl depth 200 mm Minimum cabinet size 800 mm

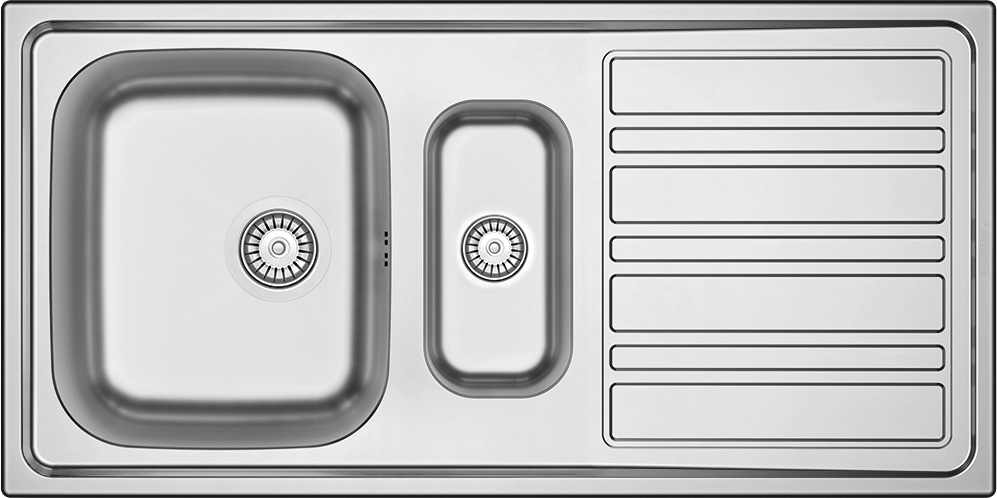

MEZZO 100-15
Total length 1000 mm Width overall 500 mm Big Bowl length 340 mm Small Bowl length 146 mm Big Bowl width 400 mm Small Bowl width 296 mm Bowl depth 200/150 mm Minimum cabinet size 600 mm

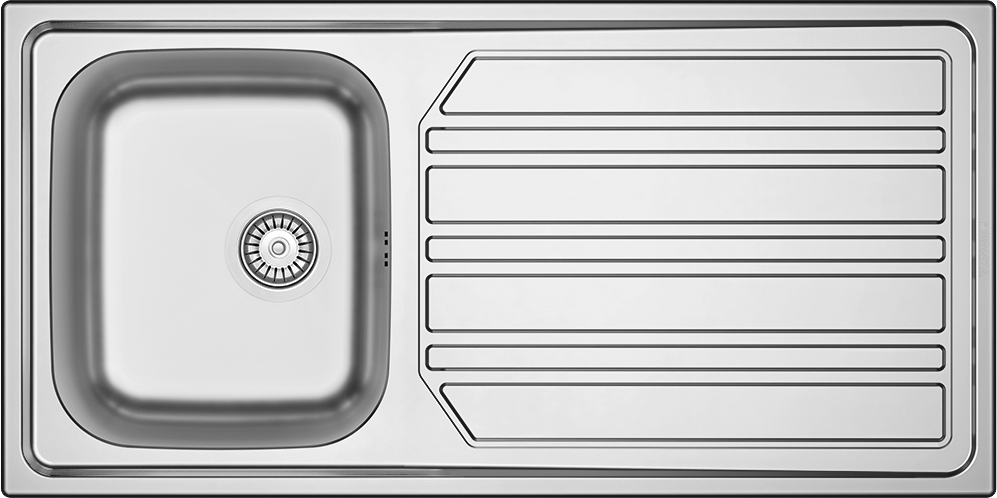

MEZZO 100-34
Total length 1000 mm Width overall 500 mm Bowl length 340 mm Bowl width 400 mm Bowl depth 200 mm Minimum cabinet size 450 mm

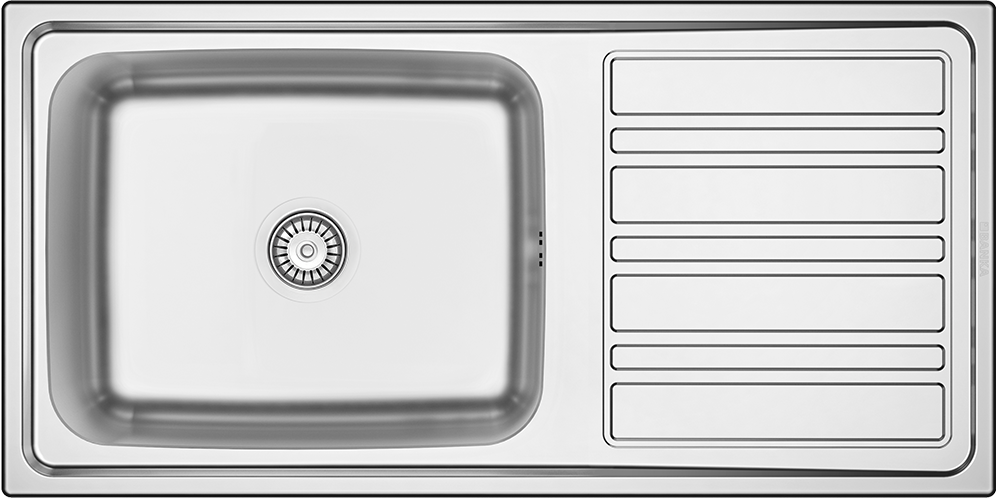

MEZZO 100-50
Total length 1000 mm Width overall 500 mm Bowl length 500 mm Bowl width 400 mm Bowl depth 200 mm Minimum cabinet size 800 mm

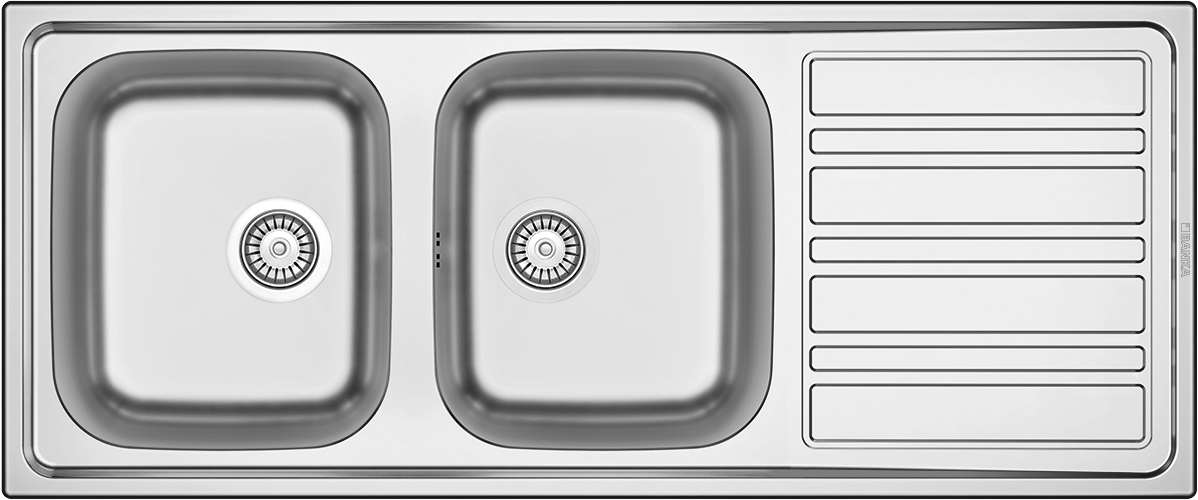

MEZZO 120
Total length 1200 mm Width overall 500 mm Bowl length 340 mm Bowl width 400 mm Bowl depth 200 mm Minimum cabinet size 800 mm

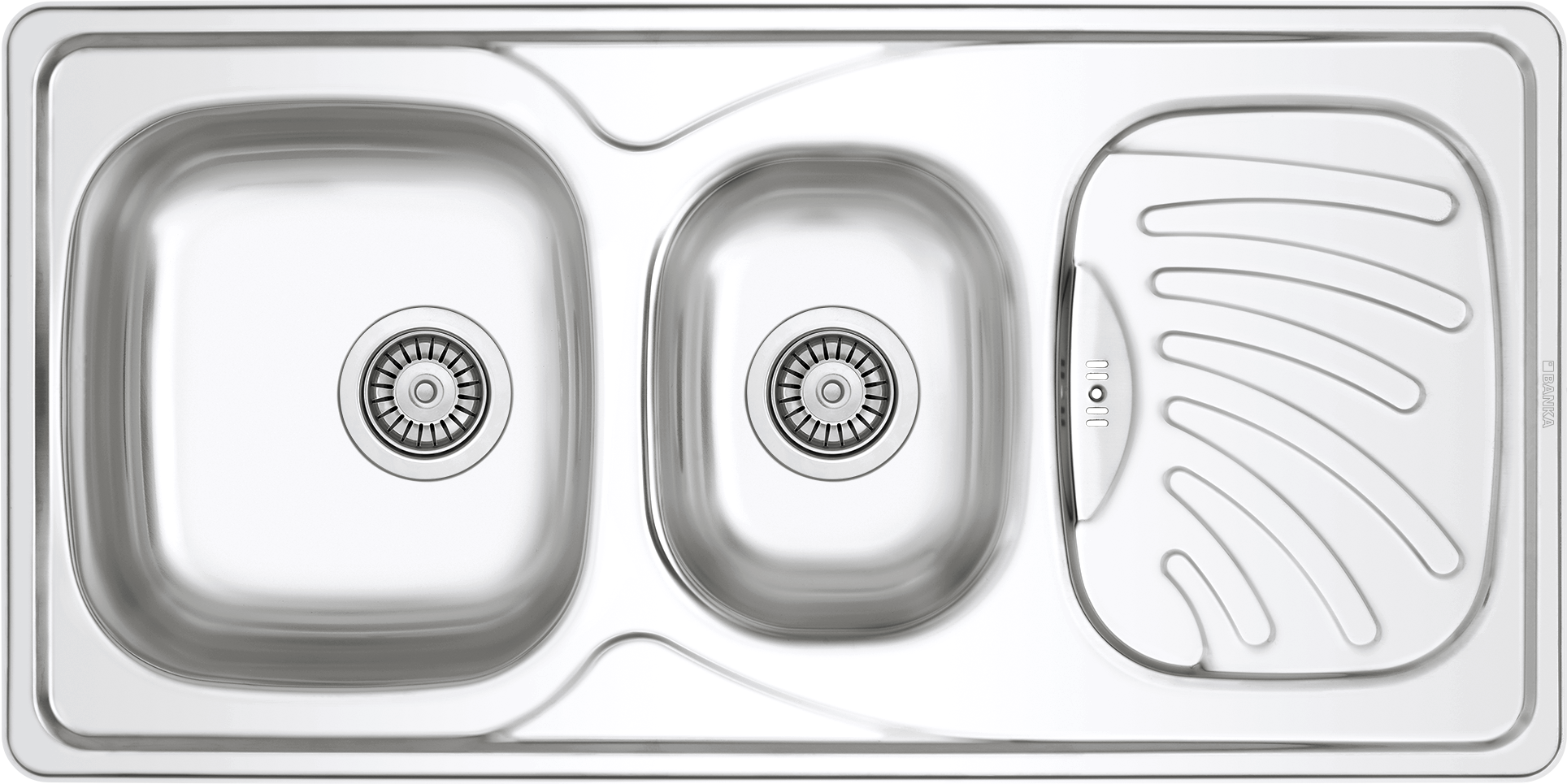

MORFUS DEEP
Total length 1005 mm Width overall 505 mm Big Bowl length 340 mm Small Bowl length 225 mm Big Bowl width 370 mm Small Bowl width 300 mm Bowl depth 150/107 mm Minimum cabinet size 800 mm

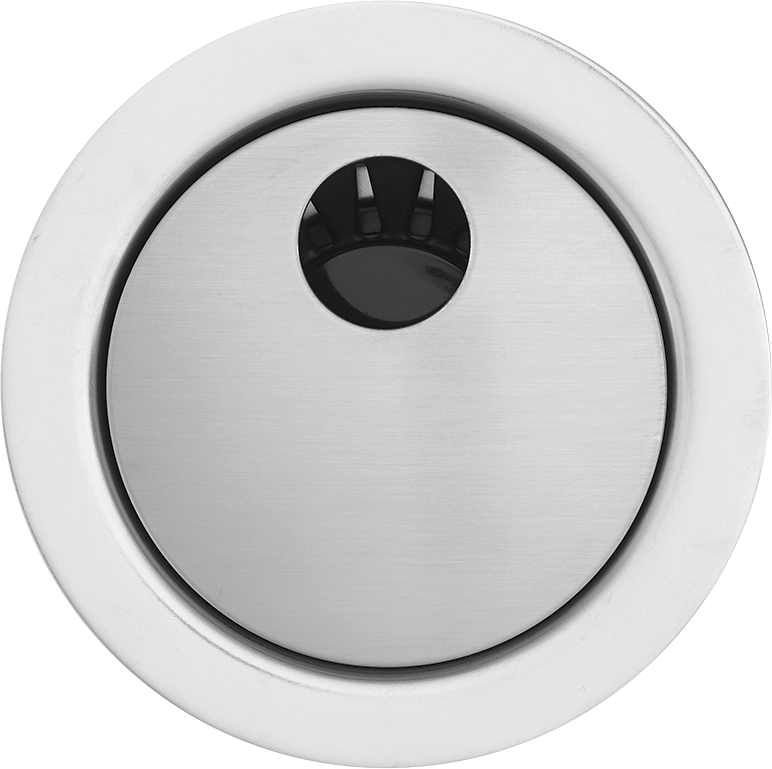

MOVE
Not Available

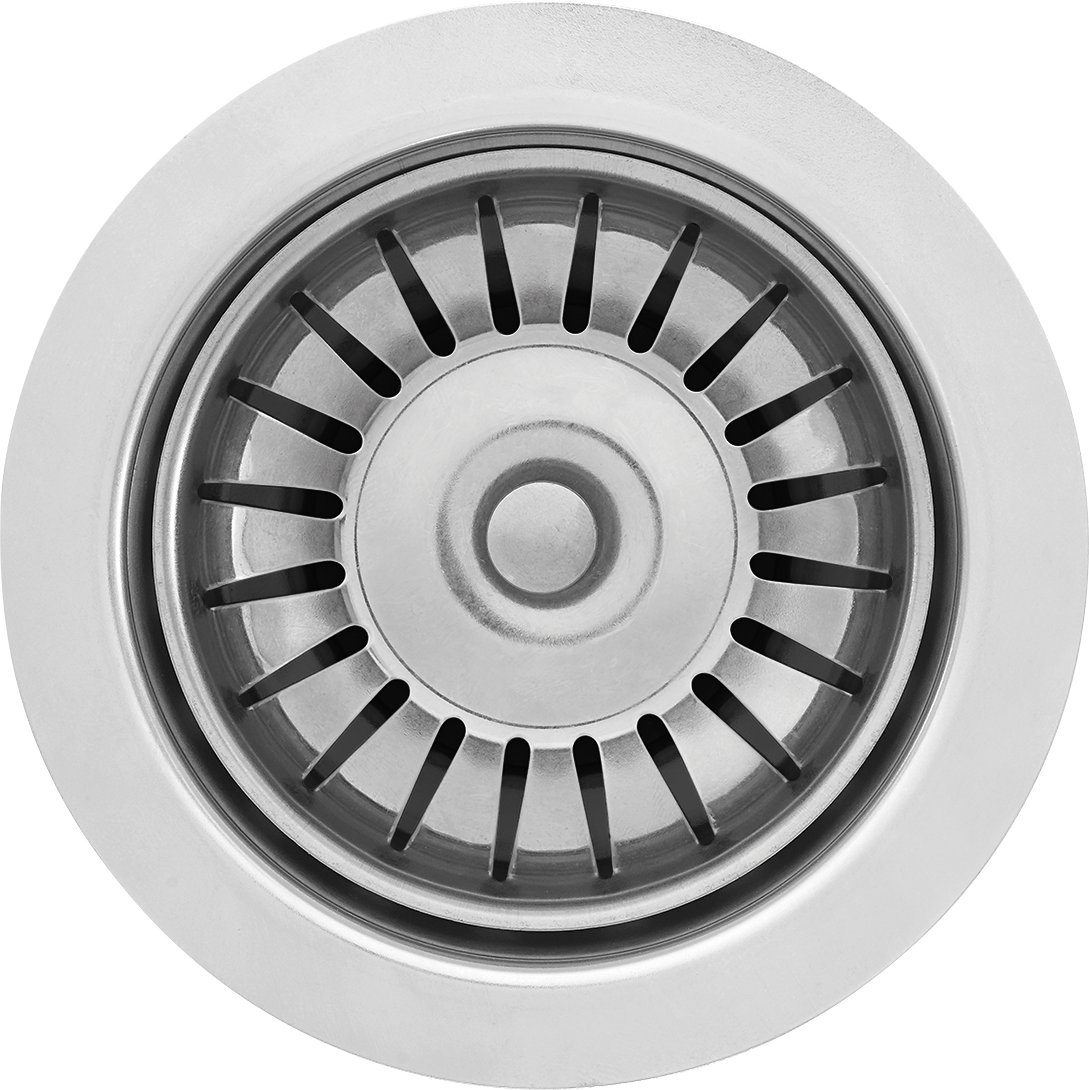

MRAY
Not Available

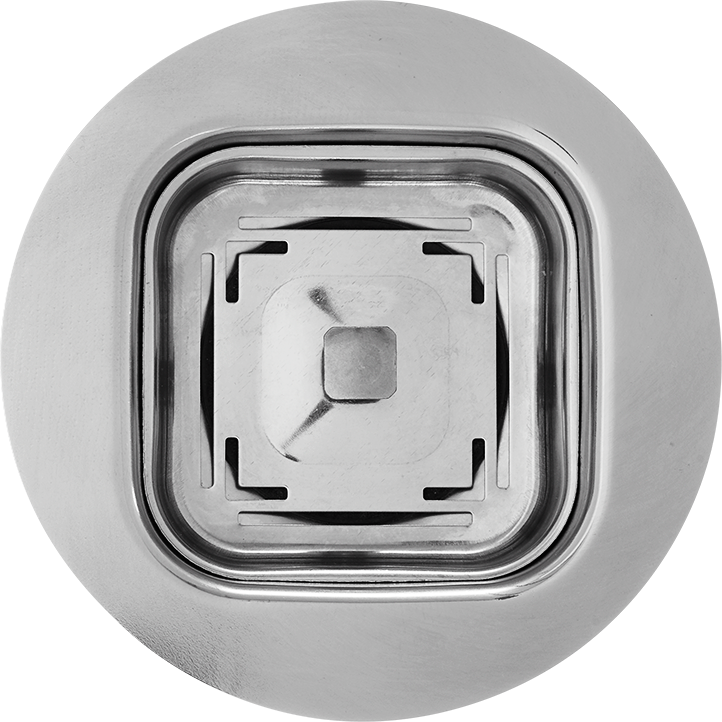

MSTYLE
Not Available

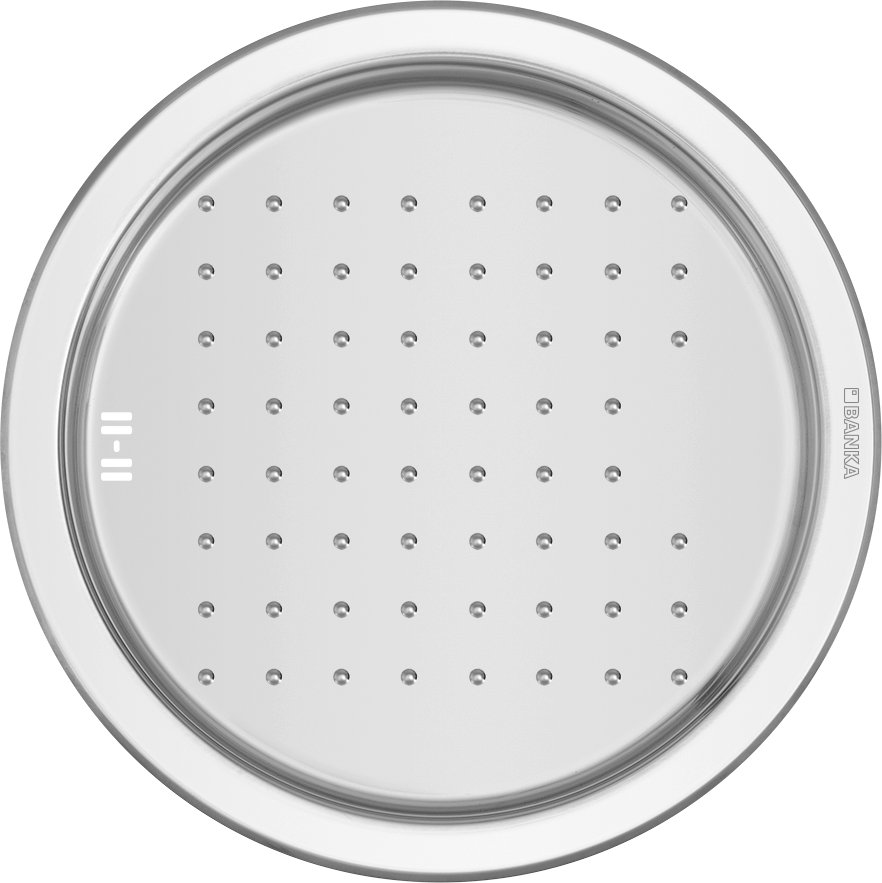

P8160
Total diameter Ø 450 mm Inner diameter Ø 390 mm Depth 18 mm Minimum cabinet size 450 mm

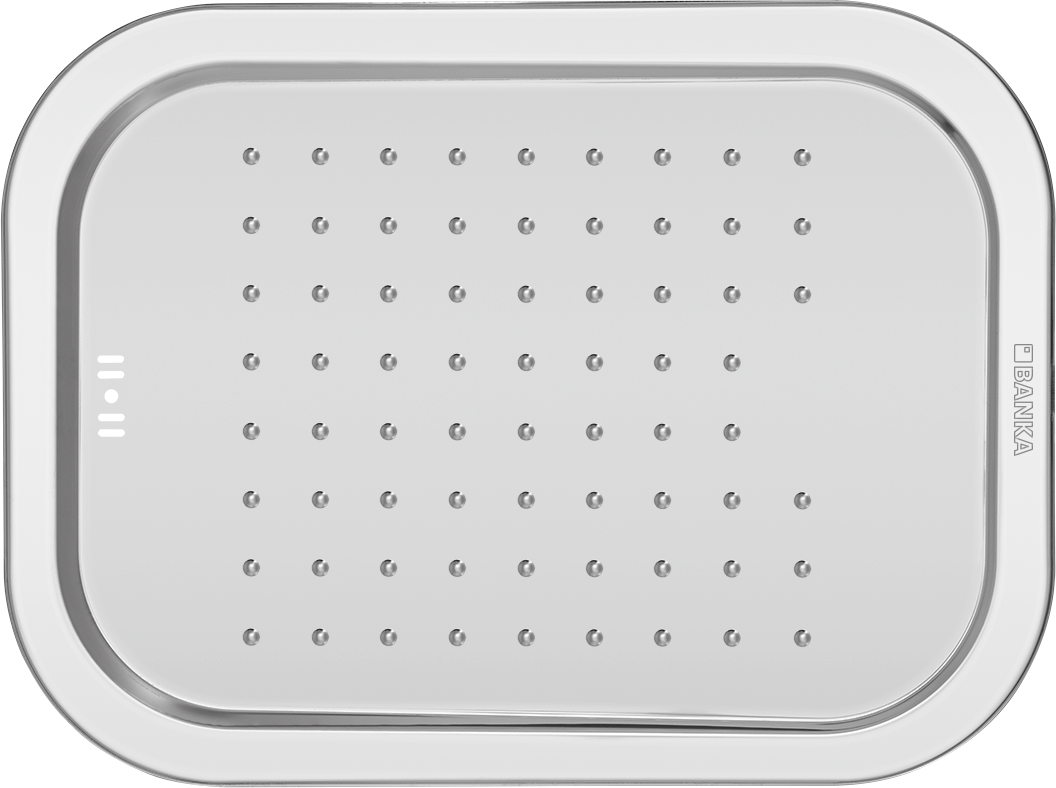

P9054
Total length 542 mm Width overall 402 mm Depth 18 mm Minimum cabinet size 600 mm
PRESS
Not Available

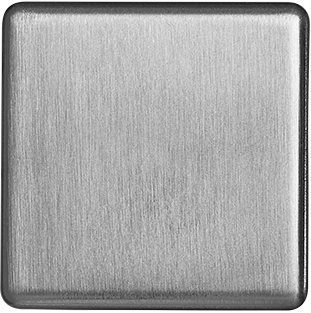

ROTATE
Not Available

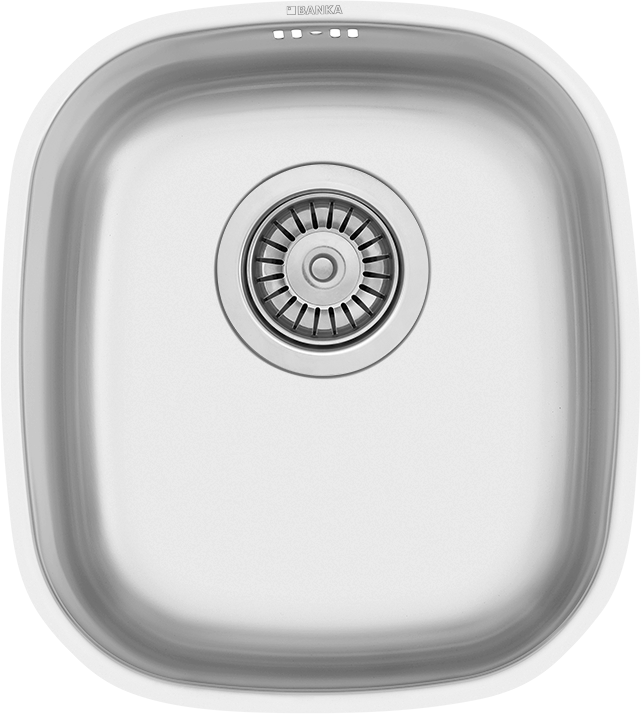

SAND 30
Total length 327 mm Width overall 367 mm Bowl length 300 mm Bowl width 339 mm Bowl depth 153 mm Minimum cabinet size 450 mm

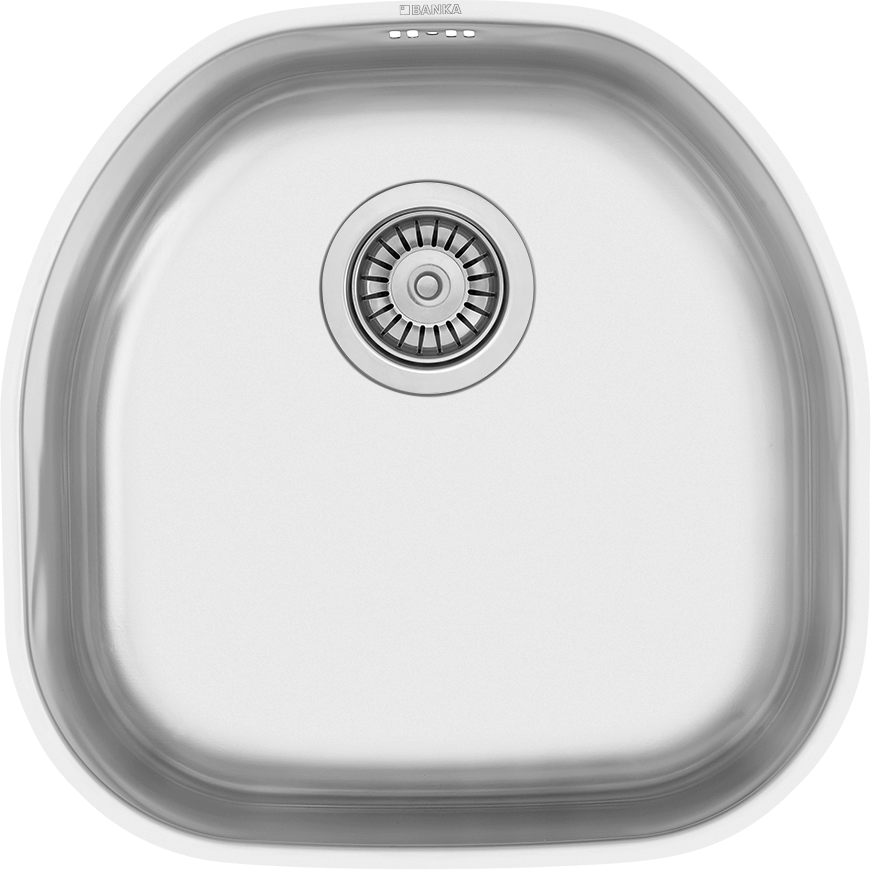

SAND 41
Total length 445 mm Width overall 446 mm Bowl length 481 mm Bowl width 481 mm Bowl depth 178 mm Minimum cabinet size 600 mm

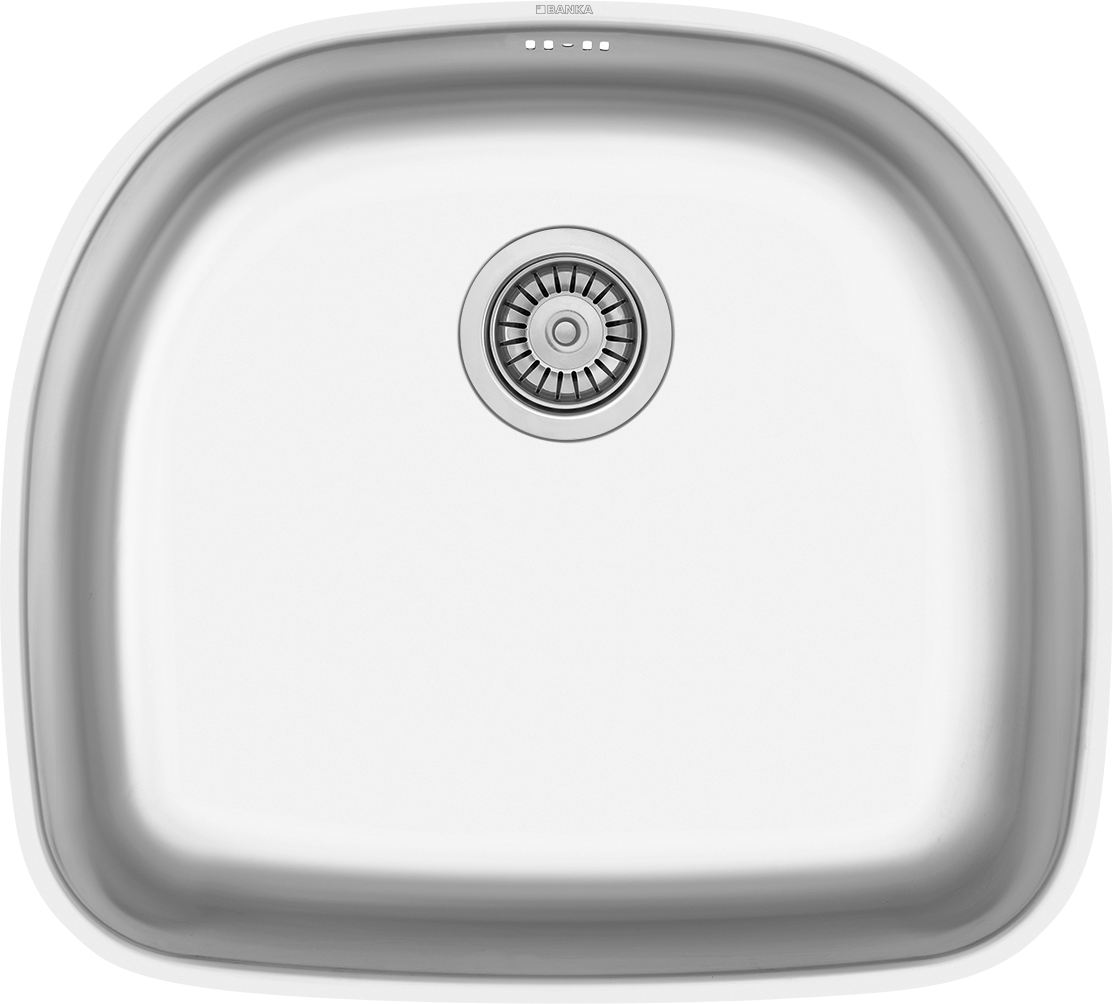

SAND 54
Total length 573 mm Width overall 509 mm Bowl length 541 mm Bowl width 481 mm Bowl depth 178 mm Minimum cabinet size 700 mm

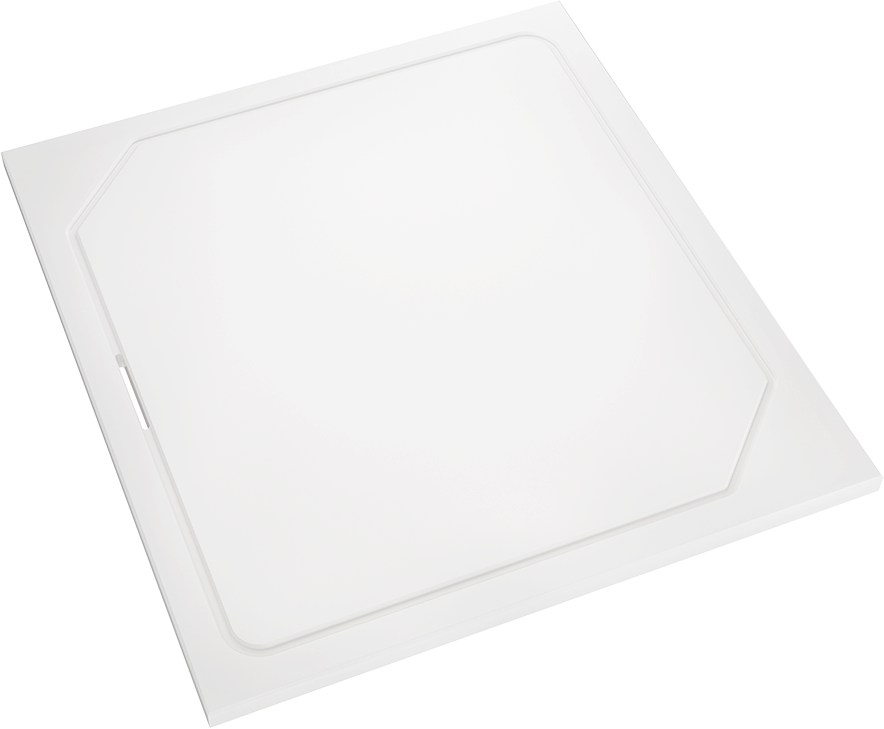

WHITE CHOPPING BOARD
Total length 370 mm Width overall 400 mm
